Oil Seal, 1.937X2.562X0.312

TCM Oil Seal, 1.937 X 2.562 X 0.312

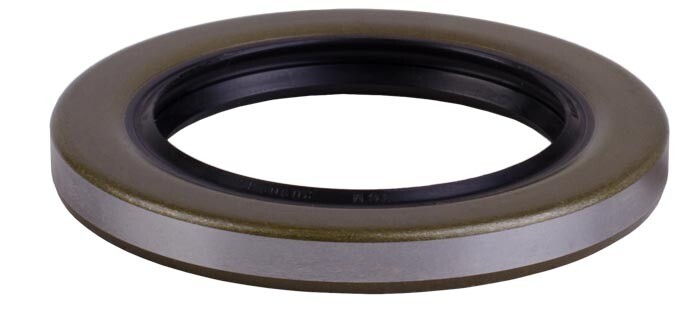

The 19325631SB TCM Oil Seal is a single-lip radial shaft seal with a garter spring and outer metal case, designed to help keep lubricants in and contaminants out in rotating equipment. Made with nitrile rubber (NBR) and rated for typical industrial conditions, it’s a solid choice for pumps, gearboxes, and transmissions—especially when you’d prefer the oil to stay inside the machine instead of auditioning for a leak.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 19325631SB
• Brand / Manufacturer: TCM / Dichtomatik
• Product Type: Oil seal / radial shaft seal
• Series: SB-H
• Seal Type / Construction: Single lip with garter spring, outer metal case
• Number of Lips: 1
• Shaft Diameter: 1.937 in
• Outside Diameter: 2.563 in
• Overall Width: 0.312 in
• Lip Material: Nitrile Rubber (NBR)
• Hardness: 70 durometer (70 Shore)
• Temperature Range: -40 to 200°F
• Pressure Tolerance: Less than 10 psi
• Typical Applications: Pumps, transmissions, gearboxes, axles, and other industrial uses
• Harmonization Code: 4016.93.5020 (US)
• Manufacturer Catalog Number: 19325631SB-H
• Weight: 0.04309 lb
• Notes: Misalignment tolerance depends on application details

Ideal For

• Replacing worn seals in pumps, gearboxes, transmissions, and axles
• Applications needing a single-lip NBR seal with spring-loaded sealing force
• Equipment running within -40 to 200°F and low-pressure conditions (<10 psi)
• Maintenance work where stopping seepage now beats cleaning it up later
