Outer Lemon Pto Tube, Walterscheid 220/720 & 2400-Series

Outer (Lemon) Pto Tube, Walterscheid 220/720 & 2400-Series

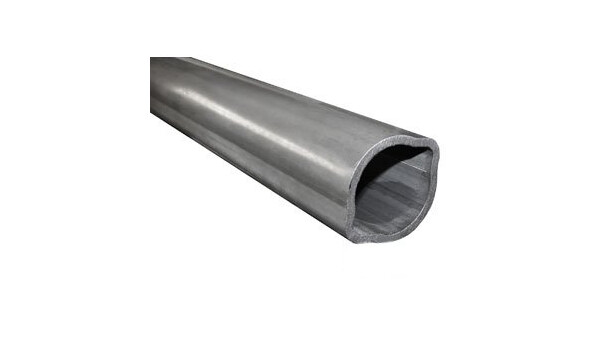

The A-W317583-A Outer (Lemon) PTO Tube is a metric-profile outer driveline tube designed to serve as a protective encasement and reinforcement around a PTO shaft in compatible assemblies. Built for Walterscheid 220/720 & 2400-Series applications, this German-style “lemon” profile tube helps keep torque transfer steady while giving the driveline a sturdy outer layer—because PTO components already work hard enough without also trying to be armor.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: A-W317583-A
• Product Type: Outer PTO tube (German-style lemon profile)
• Series Compatibility: Walterscheid 220/720 & 2400-Series
• Tube Size / Outside Diameter: 1.89 in (48 mm)
• Wall Thickness: 3.8 mm
• Length: Up to 59.05 in (1500 mm)
• Bore 1: 1.57 in (40 mm) — clearance for uncoated tube
• Connection 1: Roll pin
• Overall Height: 2.27 in (58 mm)
• Overall Width: 1.89 in (48 mm)

Ideal For

• Replacing a worn or damaged outer PTO tube on Walterscheid 220/720 & 2400-Series drivelines
• Applications needing a 48 mm OD metric tube with 3.8 mm wall for added durability
• PTO assemblies using German-style lemon profile tubing (when round just won’t cut it)
• Builds or repairs requiring a roll pin connection and 40 mm bore clearance for uncoated tube
