Inner Profile Yoke, Walterscheid 2400-Series (Star)

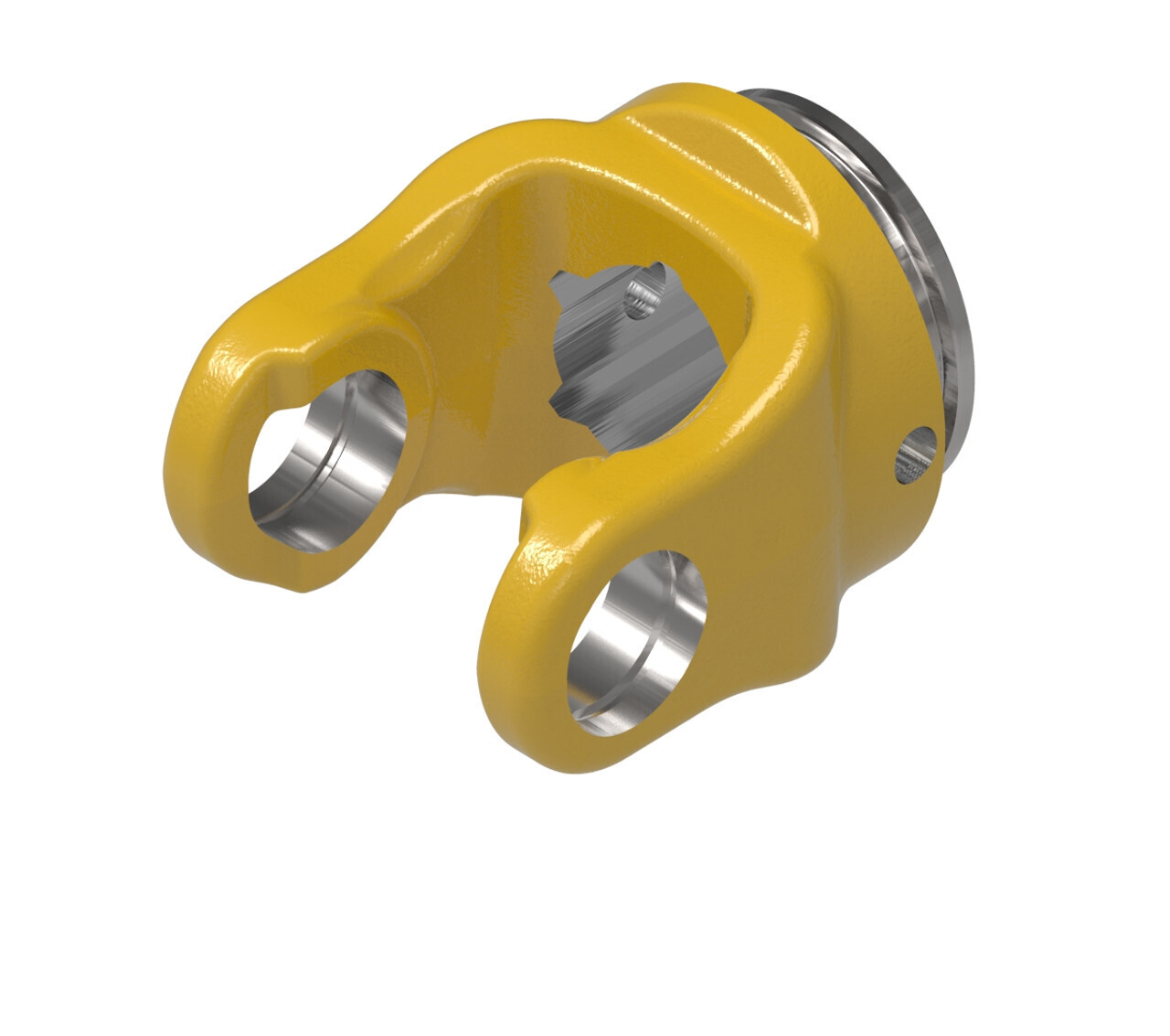

The 300-7651 Inner Profile Yoke for Walterscheid 2400-Series (Star) is a heavy-duty PTO driveline component designed to connect the cross and bearing kit to the telescoping shaft or inner tube. Built to handle demanding agricultural power transmission, this star-profile inner yoke supports up to 102 HP at 1000 RPM and 66 HP at 540 RPM, making it well suited for a wide range of tractor-driven implements. Precision-machined for proper fit and durability, it uses a roll-pin connection and is engineered to withstand continuous driveline loads in field conditions.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 300-7651
• Product Type: Inner profile (shaft) yoke
• Series Compatibility: Walterscheid 2400-Series
• Profile Shape: 51 mm Star
• Bore: 2.00 in / 51 mm
• Connection Type: Roll pin
• Horsepower Rating @ 1000 RPM: 102 HP (76 kW)
• Horsepower Rating @ 540 RPM: 66 HP (49 kW)
• Overall Length: 3.62 in / 92 mm
• Height: 4.09 in / 104 mm
• Width: 2.76 in / 70 mm
• Weight: 3.75 lb / 2 kg
• Shipping Dimensions: 4.59 in L × 4.09 in H × 2.76 in W
• Shipping Volume: 51.81 in³ / 849 cm³

Ideal For

• Replacing worn or damaged inner profile yokes on PTO drivelines
• Agricultural equipment using Walterscheid 2400-Series star profiles
• Applications requiring reliable power transfer at 540 or 1000 RPM
• PTO shafts where a roll-pin retained, star-profile connection is required
• Farm and implement maintenance where durability and precise fit matter
