Outer Profile Yoke, Walterscheid Series 2400 (Star)

Outer Profile Yoke, Walterscheid Series 2400 (Star)

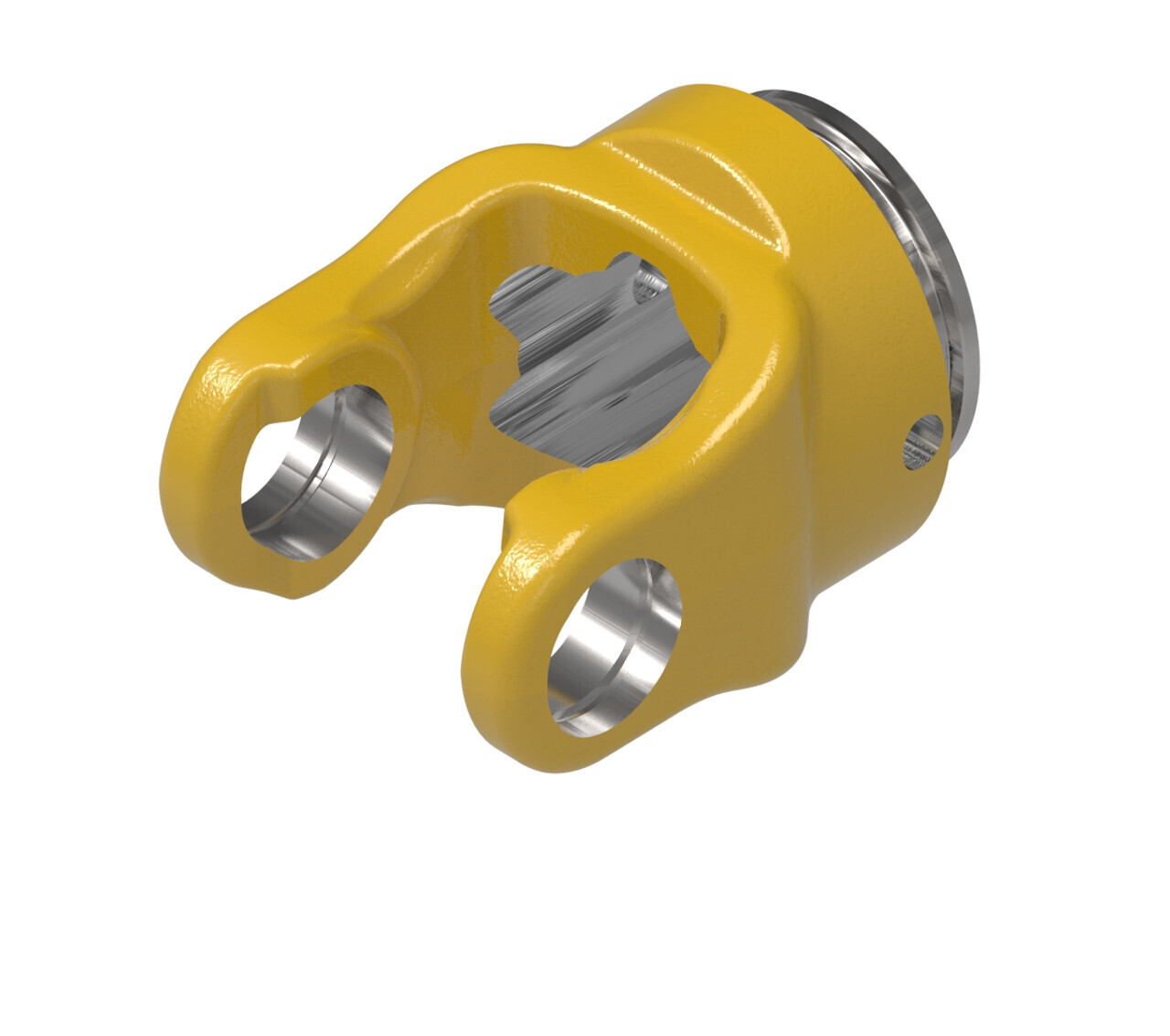

The 700-7661 Outer Profile Yoke (Walterscheid Series 2400, Star profile) is an outer tube yoke designed to connect a cross and bearing kit to the outer tube side of a PTO driveline’s telescoping shaft. Built for metric driveline profiles, it features a 61 mm Star (profile) bore with a roll pin connection, and it’s rated to handle solid horsepower levels for common agricultural PTO applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 700-7661
• Series / Fitment: Walterscheid Series 2400
• Product Type: Outer profile yoke (tube yoke)
• Profile / Bore: 61 mm STAR (2.40 in / 61 mm)
• Connection Type: Roll pin
• Power Rating @ 540 RPM: 66 HP (49 kW)
• Power Rating @ 1000 RPM: 102 HP (76 kW)
• Overall Length: 4.01" (102 mm)
• Height: 4.09" (104 mm)
• Width: 2.76" (70 mm)
• Weight: 3.90 lb (2 kg)
• Shipping Dimensions: 4.98" L × 4.09" H × 2.76" W (13 cm L × 10 cm H × 7 cm W)
• Shipping Volume: 56.22 in³ (921 cm³)
• Shipping Weight: 3.90 lb (2 kg)

Ideal For

• PTO drivelines needing a Walterscheid 2400 Series outer tube yoke replacement
• Telescoping shaft assemblies using a 61 mm Star profile
• Applications requiring a roll-pin connected outer profile/tube yoke
• Equipment operating up to 66 HP @ 540 RPM or 102 HP @ 1000 RPM
• Repairing driveline play or wear at the outer tube yoke connection point
