Outer Pto Tube, B&P 5-Series, 51.5mm X 3 Wall

Outer Pto Tube, B&P 5-Series

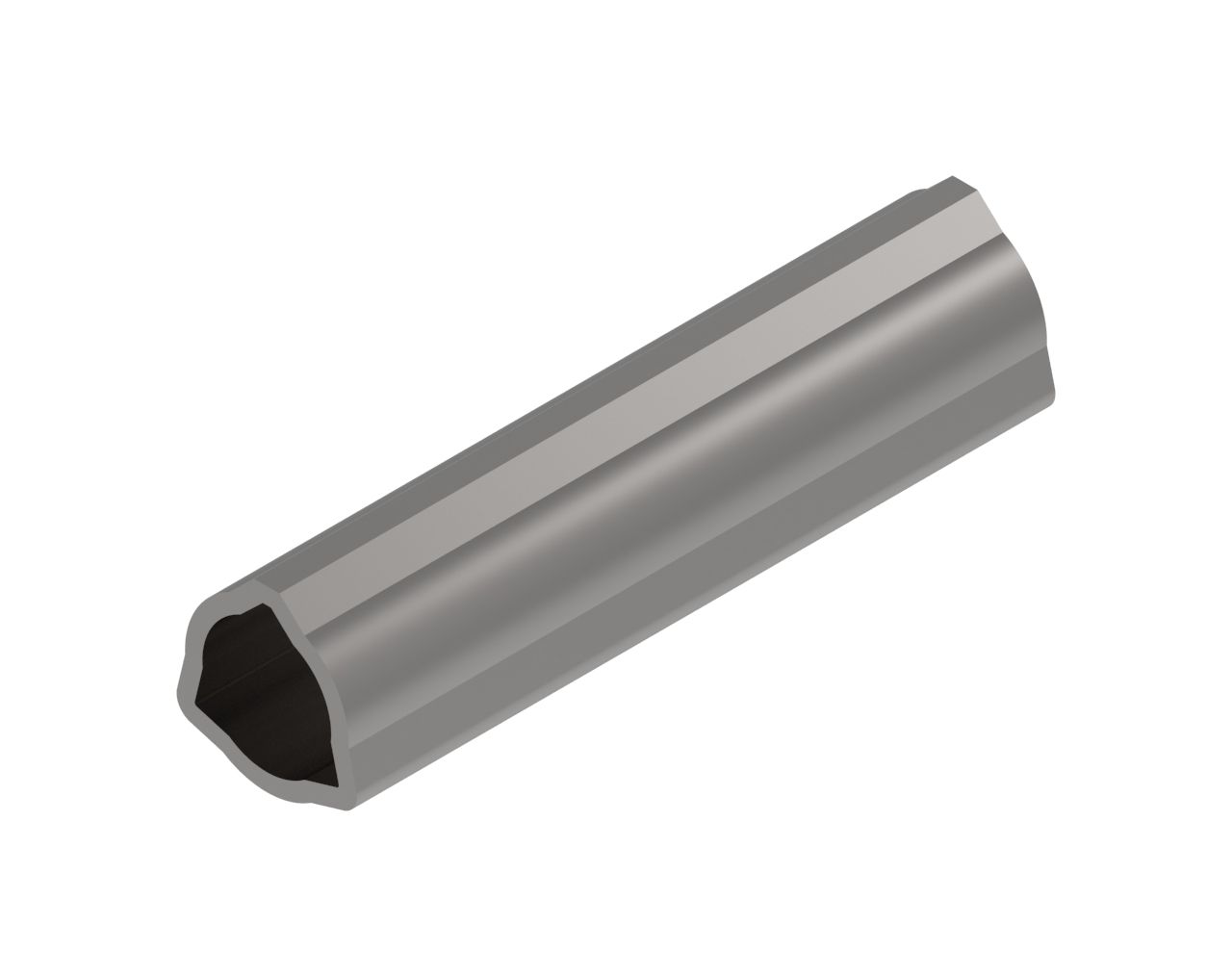

The A-BP125101500-A Outer PTO Tube is a 5-Series outer driveline tube designed to act as a metal cylindrical encasement for the shaft in a PTO driveline, adding strength and reinforcement where the work (and torque) happens. With a 51.5 mm profile and 3 mm wall, it’s built for durability and proper fit—because a PTO tube should be tough, not “surprising.”

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP125101500-A
• Brand / Series: B&P 5-Series
• Product Type: Outer PTO tube
• Tube Profile / Size: 51.5 mm (approx. 2.02 in)
• Wall Thickness: 3 mm
• Length: Up to 1500 mm (59.05 in)
• Outside Diameter / Height: 51 mm (2.02 in)
• Width: 47 mm (1.87 in)
• Bore 1: 46 mm (1.81 in) — clearance for uncoated tube
• Connection Type: Roll pin
• Tubing Notes: PTO tubing is available in domestic and metric profile shapes; Weasler Profile lines include metric styles in German (lemon/star) and Italian (trilobed) profiles

Ideal For

• Replacing a worn or damaged outer PTO driveline tube in a 5-Series application
• Drivelines needing reinforcement from a 3 mm wall tube
• PTO shaft service where correct profile size and length (1500 mm) matter
• Shops and farms keeping PTO equipment running safely without “it looks close enough” fitment guesses
