Outer Pto Tube, B&P 8-Series

Bondioli & Pavesi Outer Pto Tube, B&P 8-Series

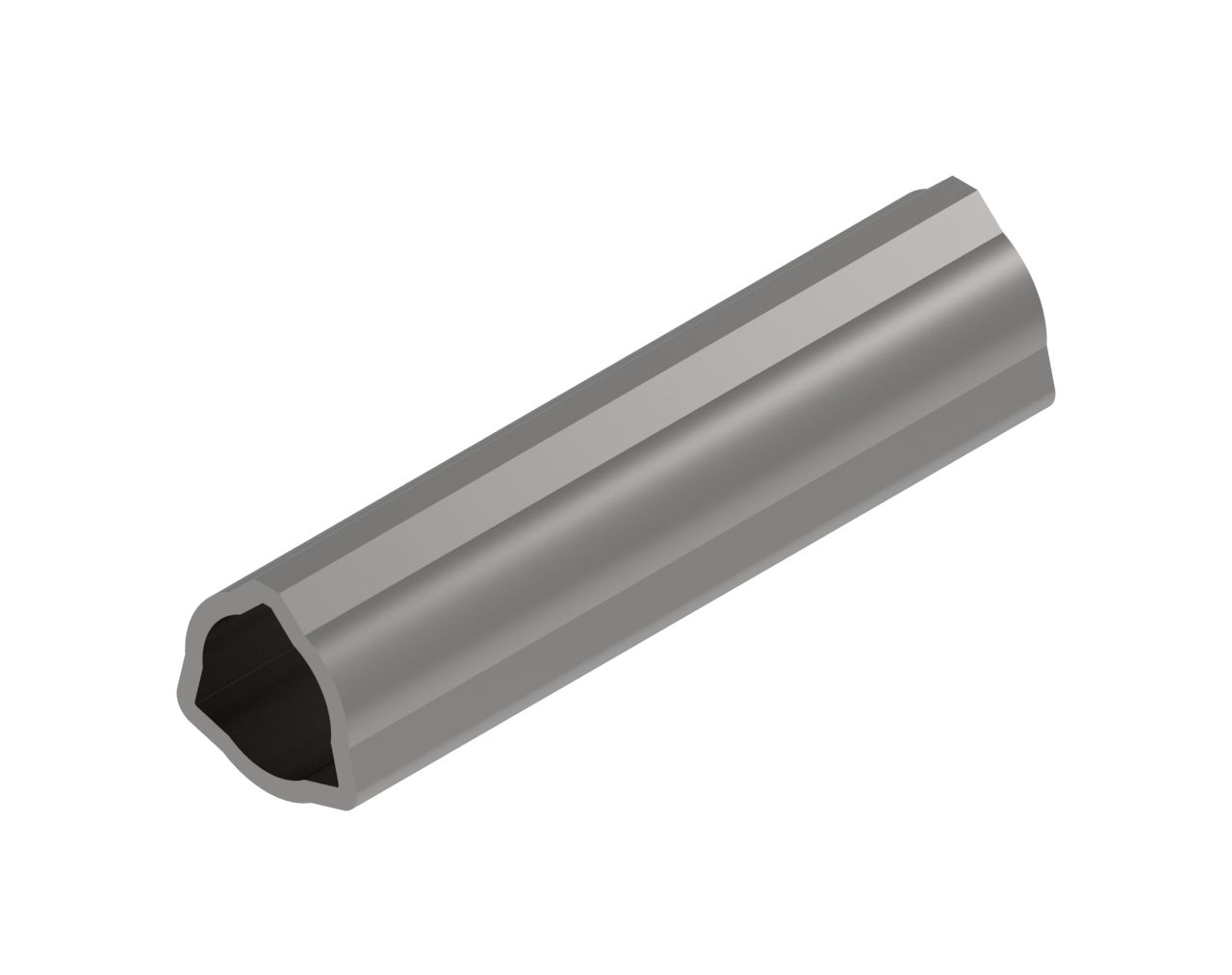

The A-BP125221500-A Bondioli & Pavesi Outer PTO Tube (B&P 8-Series) is a heavy-duty outer driveline tube designed to act as the protective metal encasement around the shaft within a PTO driveline while adding structural reinforcement for dependable power transmission. This tube features a 63mm outside diameter with a 4mm wall thickness and a 1500mm (59.05") length, making it a solid replacement option for matching B&P 8-Series driveline builds and repairs. It uses a roll pin connection and provides clearance for uncoated tube fitment.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP125221500-A
• Brand / Series: Bondioli & Pavesi 8-Series
• Product Type: Outer PTO tube
• Tube Size / Outside Diameter: 2.48 in (63 mm)
• Wall Thickness: 4 mm
• Length: Up to 59.05 in (1500 mm)
• Bore 1: 2.16 in (55 mm) — clearance for uncoated tube
• Connection: Roll pin
• Height: 2.48 in (63 mm)
• Replaces: 6006863

Ideal For

• Replacing or rebuilding Bondioli & Pavesi 8-Series PTO driveline outer tubes
• PTO shaft assemblies needing a 63mm OD, 4mm wall outer tube
• Repairs requiring a roll pin connection style tube
• Maintaining driveline strength where the tube provides reinforcement and protection around the internal shaft
