Outer Pto Tube, Walterscheid 2200/2300

Outer (Lemon) Pto Tube, Walterscheid 2200/200 & 2300/210 & I-Series

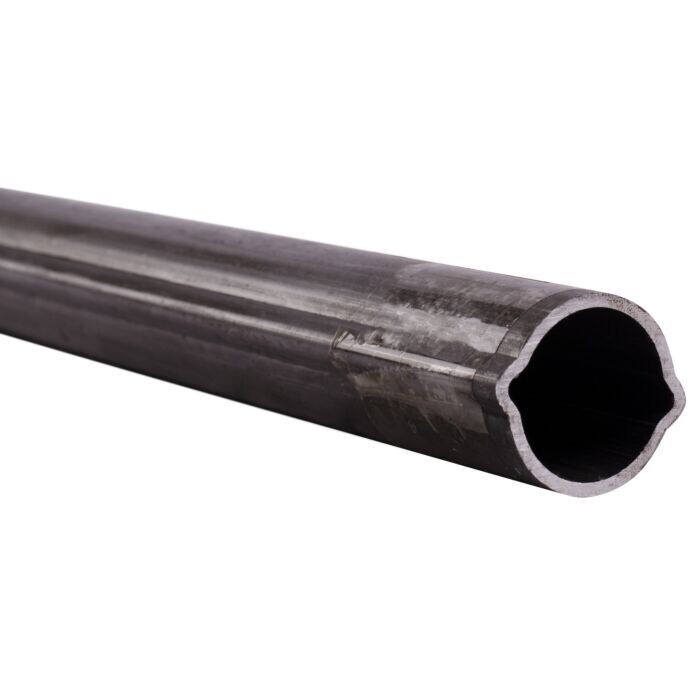

The A-W087637-A Outer (Lemon) PTO Tube is a Walterscheid outer driveline tube in a German-style lemon profile, designed to serve as the protective encasement and reinforcement for the shaft within a PTO drive shaft. With a 41 mm tube size and 2.9 mm wall, it’s built for the Walterscheid 2200/200, 2300/210, and I-Series systems—because a PTO tube shouldn’t be the weak link in your driveline.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-W087637-A
• Brand / Series: Walterscheid (2200/200, 2300/210 & I-Series)
• Product Type: Outer PTO tube (Lemon profile)
• Profile / Style: German-style “Lemon”
• Tube Size / Outside Diameter: 41 mm (1.62 in)
• Wall Thickness: 2.9 mm
• Length: Up to 1500 mm (59.05 in)
• Bore 1: 35 mm (1.37 in) (clearance for uncoated tube)
• Width: 41 mm (1.62 in)
• Height: 48 mm (1.9 in)
• Connection 1: Roll pin
• Use Note: PTO tubing provides reinforcement and protection for drivelines; metric profiles include German (lemon/star) and Italian (trilobed) styles

Ideal For

• Replacing a worn or damaged outer lemon-profile tube on compatible Walterscheid PTO drivelines
• PTO applications requiring 41 mm tubing with a 2.9 mm wall for strength and longevity
• Driveline repairs where proper tube fit helps reduce vibration and extend PTO component life
