Outer Tube Yoke, #1 B&P

Outer Tube Yoke, #1 B&P

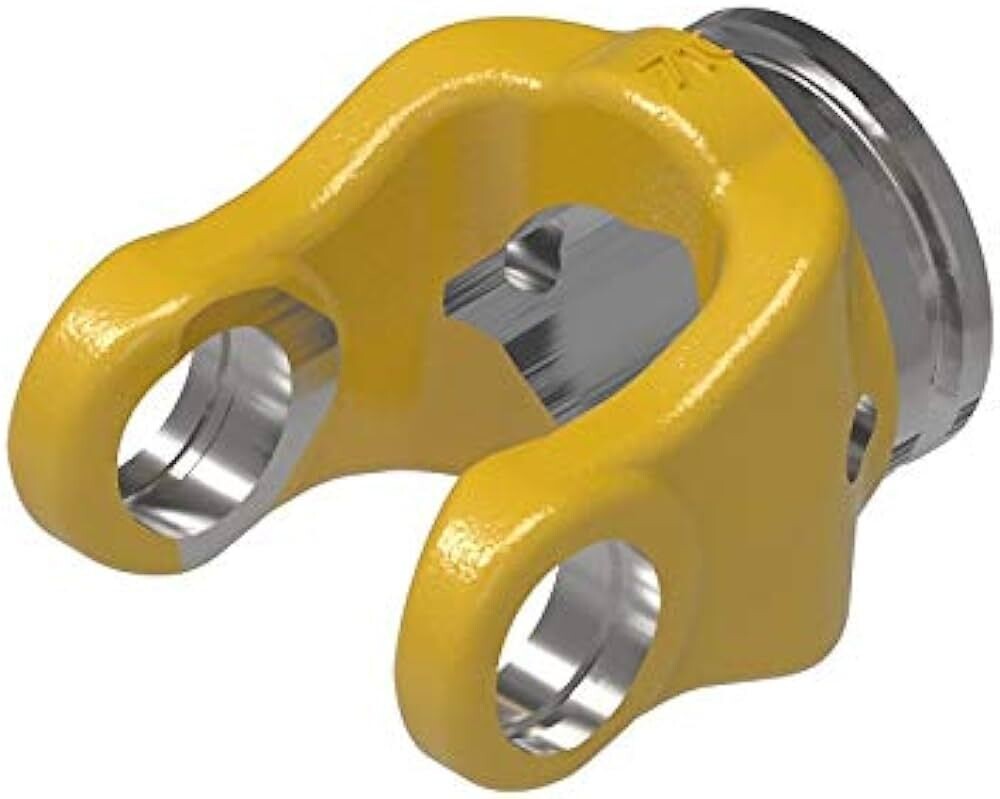

The 700-6133 Outer Tube Yoke (#1 B&P) is a Weasler-style PTO driveline tube yoke (outer profile yoke) designed to connect cross & bearing kits to the telescoping shaft’s outer tube. Built for dependable driveline performance, it supports up to 29 HP @ 1000 RPM (19 HP @ 540 RPM) and features a 33 mm trilobe bore with a roll pin connection for secure fitment.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 700-6133
• Description: Outer Tube Yoke (Tube Yoke / Outer Profile Yoke)
• Application: Connects cross & bearing kits to the telescoping shaft / outer tube
• Bore 1: 1.29 in (33 mm) — 33 mm TRILOBE
• Connection 1: ROLL PIN
• Pin Hole: 0.31 in (8 mm)
• Outside Diameter: 1.85 in (47 mm)
• Length: 2.59 in (66 mm)
• Height: 2.80 in (71 mm)
• Width: 2.13 in (54 mm)
• Power Rating @ 1000 RPM: 29 HP (22 kW)
• Power Rating @ 540 RPM: 19 HP (14 kW)
• Weight: 1.10 lb
• Shipping Weight: 1.10 lb
• Shipping Dimensions: 3.25" L × 2.8" H × 2.13" W (8 cm L × 7 cm H × 5 cm W)
• Shipping Volume: 19.38 in³ (318 cm³)

Ideal For

• Replacing a worn or damaged outer tube yoke on a PTO driveline
• Applications needing a 33 mm trilobe (metric Weasler-style) bore with roll pin retention
• Drivelines operating up to 29 HP @ 1000 RPM or 19 HP @ 540 RPM
• Maintenance/repair work where correct OD, pin hole size, and overall dimensions are critical for proper fitment
