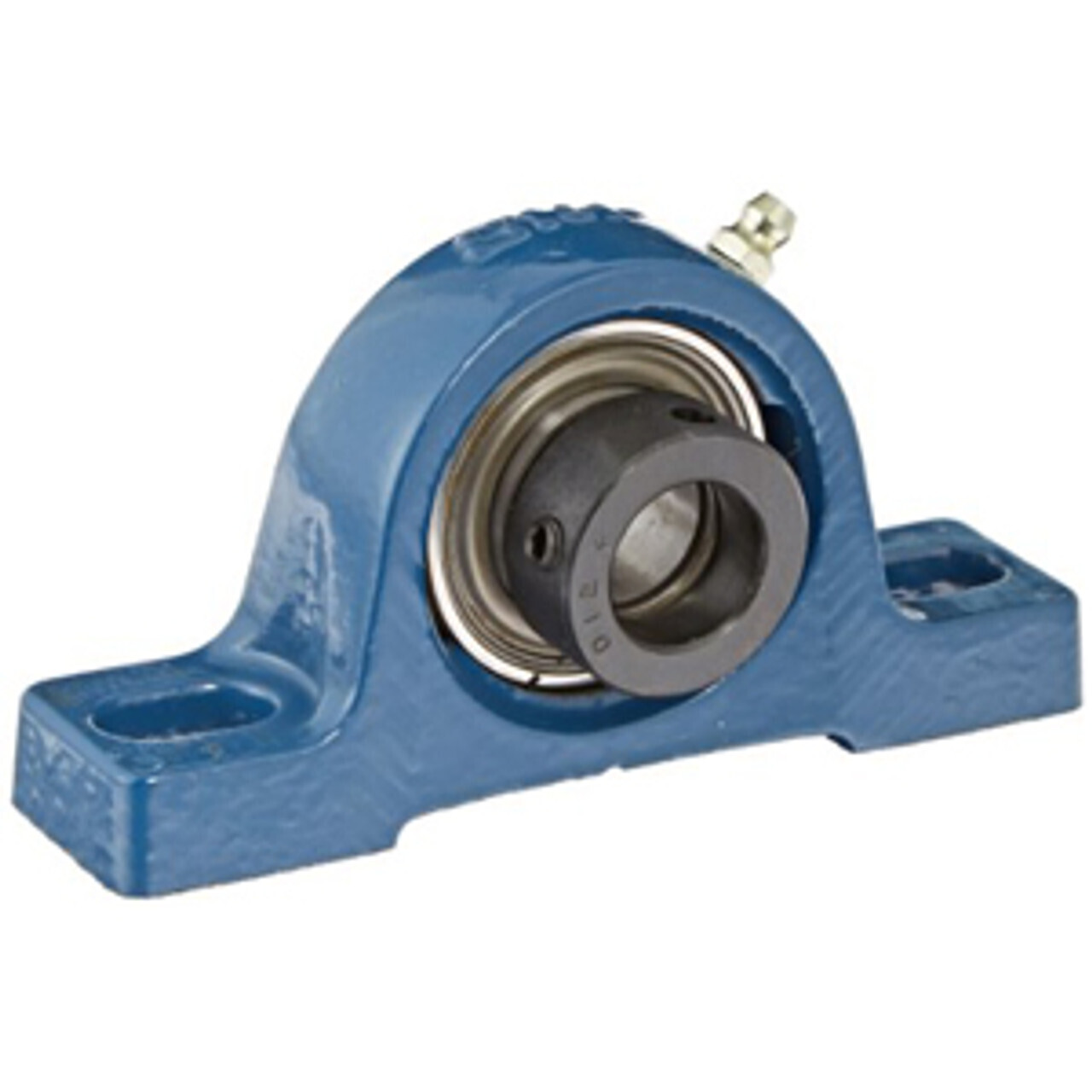

Pillow Block Bearing, 1-1/4"

Pillow Block Bearing, 1-1/4"

SAPE Pillow block bearing is a two-bolt normal duty pillow block bearing with a 1-1/4" bore. It utilizes an eccentric locking collar for securing the beating to a 1-1/4" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our SAPE Pillow block bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SAPE series pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this SAPE series bearing is directly interchangeable with other brands.

SAPE206-20 Bearing Dimensions

• Part #: SAPE 206-20
• Shaft Diameter (d): 1-1/4"
• Dimension (H): 1.563"
• Dimension (A): 6.31"
• Dimension (E): 4.75"
• Dimension (B): 1.88"
• Dimension (S2): 0.75"
• Dimension (S1): 0.59"
• Dimension (G): 0.67"
• Dimension (W): 3.16"
• Dimension (Bi): 1.9055"
• Dimension (N): 0.7165"
• Dimension (M): 0.7205"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: HC 206-20
• Housing Number: AK 206
• Weight (LBS): 2.9
