Pillow Block Bearing, 1-15/16"

KML Pillow Block Bearing, 1-15/16"

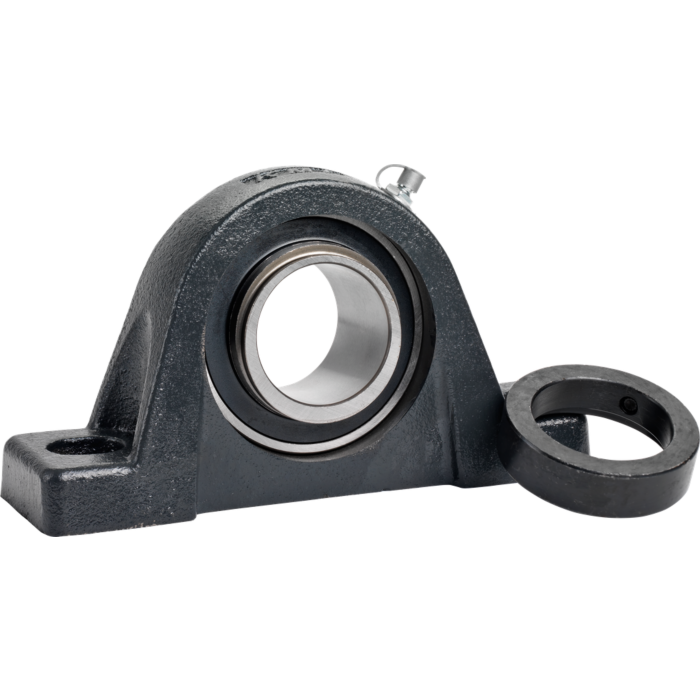

The HCPE210-31 Pillow Block Bearing is a heavy-duty mounted bearing unit designed for 1-15/16" shaft applications, combining a HC 210-31 bearing insert with an AK 210 housing for dependable support in industrial and agricultural equipment. With a 7,867 lb dynamic load rating and 5,330 lb static load rating, it’s built to handle demanding loads while providing a stable, bolt-down mounting footprint.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: HCPE210-31
• Product Type: Pillow block bearing (mounted bearing unit)
• Shaft Diameter (d): 1-15/16"
• Bearing Insert: HC 210-31
• Housing Number: AK 210
• Dynamic Load Rating: 7,867 lbs
• Static Load Rating: 5,330 lbs
• Bolt Used: 5/8"
• Weight: 6.6 lbs
• Dimension (A): 8.00"
• Dimension (E): 6.25"
• Dimension (H): 2.188"
• Dimension (B): 2.25"
• Dimension (W): 4.44"
• Dimension (Bi): 2.4685"
• Dimension (S2): 0.94"
• Dimension (S1): 0.79"
• Dimension (G): 0.88"
• Dimension (N): 0.9685"
• Dimension (M): 0.9685"

Ideal For

• Supporting rotating shafts in industrial or agricultural equipment using a 1-15/16" shaft
• Applications needing a bolt-down pillow block with 5/8" mounting hardware
• Equipment requiring higher load capacity with 7,867 lb dynamic and 5,330 lb static ratings
• Replacement installs where the unit uses HC 210-31 insert and AK 210 housing
