Pillow Block Bearing, 1-5/8"

KML Pillow Block Bearing, 1-5/8"

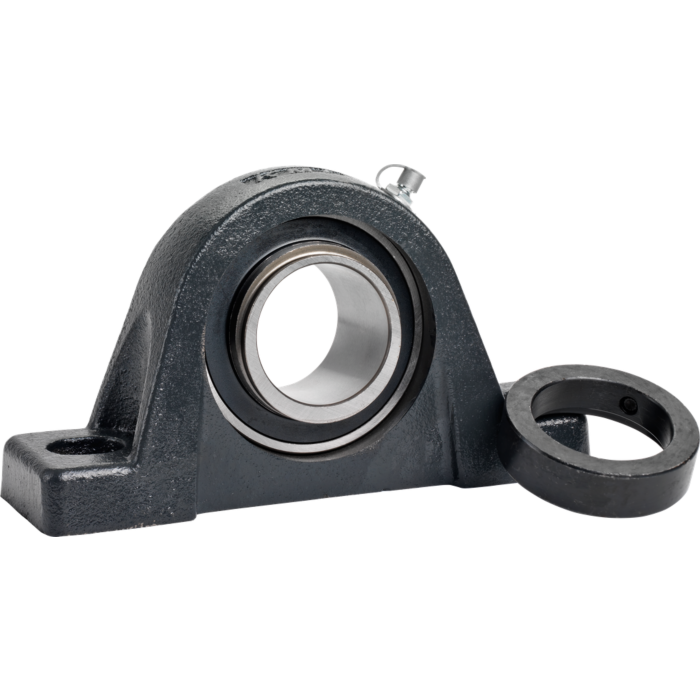

The HCPE209-26 Pillow Block Bearing is a heavy-duty mounted bearing unit built for 1-5/8" shaft applications, pairing the HC 209-26 bearing insert with an AK 209 housing for stable, bolt-down support in industrial and agricultural equipment. With a 7,160 lb dynamic load rating and 4,676 lb static load rating, it’s a strong choice for demanding rotating shaft setups.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: HCPE209-26
•
• Product Type: Pillow block bearing (mounted bearing unit)
• Shaft Diameter (d): 1-5/8"
• Bearing Insert: HC 209-26
• Housing Number: AK 209
• Dynamic Load Rating: 7,160 lbs
• Static Load Rating: 4,676 lbs
• Bolt Used: 1/2"
• Weight: 5.6 lbs
• Dimension (A): 7.50"
• Dimension (E): 5.75"
• Dimension (H): 2.063"
• Dimension (B): 2.13"
• Dimension (W): 4.19"
• Dimension (Bi): 2.2165"
• Dimension (S2): 0.75"
• Dimension (S1): 0.59"
• Dimension (G): 0.81"
• Dimension (N): 0.8425"
• Dimension (M): 0.8425"

Ideal For

• Supporting rotating shafts on equipment using a 1-5/8" shaft
• Applications needing a bolt-down pillow block with 1/2" mounting hardware
• Setups requiring higher load handling with 7,160 lb dynamic and 4,676 lb static ratings
• Replacement installs matching HC 209-26 insert and AK 209 housing configurations
