Pillow Block Bearing, 2"

Pillow Block Bearing, 2", 6-3/4" C-C Mounting Hole

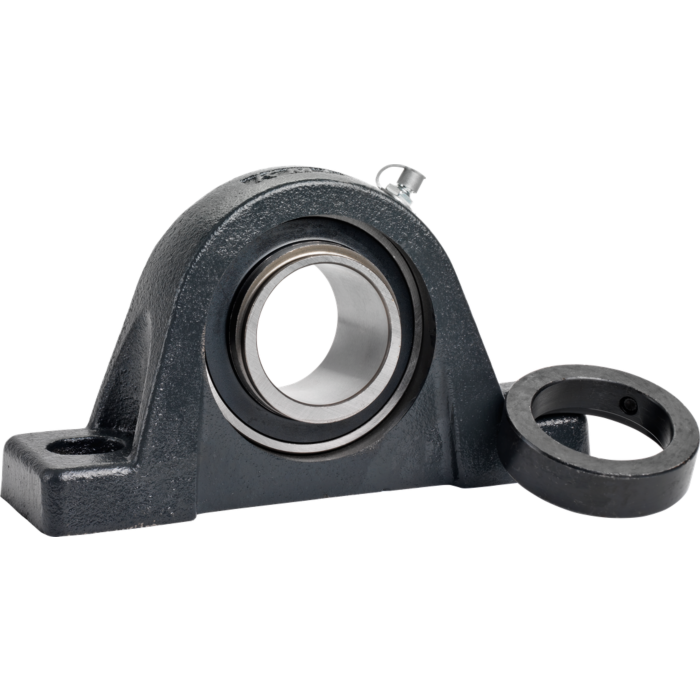

HCPE211-32 bearing is a two-bolt normal duty pillow block bearing with a 2" bore. It utilizes an eccentric locking collar for securing the beating to a 2" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCPE211-32 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCPE211-32 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCPE211-32 bearing is directly interchangeable with other brands.

HCPE211-32 Bearing Dimensions

• Part #: HCPE 211-32
• Shaft Diameter (d): 2"
• Dimension (H): 2.437"
• Dimension (A): 9.13"
• Dimension (E): 7.13"
• Dimension (B): 2.38"
• Dimension (S2): 0.94"
• Dimension (S1): 0.79"
• Dimension (G): 0.98"
• Dimension (W): 4.94"
• Dimension (Bi): 2.8110"
• Dimension (N): 1.0906"
• Dimension (M): 1.0945"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608
• Bearing Insert: HC 211-32
• Housing Number: AK 211
• Weight (LBS): 8.8
