Name: Piston Seal, 3.25 X .115
Brand: Hercules Sealing Products
SKU: PS1500-52
Price: 9.39 USD
Availability: InStock

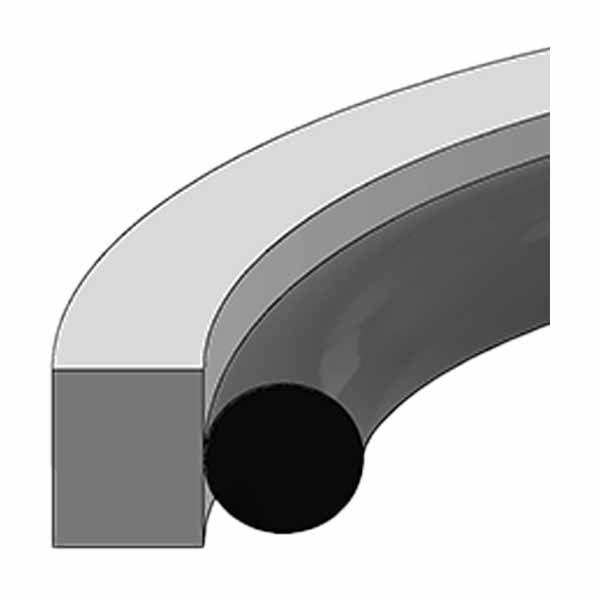

PS1500-52 is a PS1500 Piston Seal Assembly

ID 2.856 X OD 3.250 X Height 0.115
MFG # AS800E-52P, AUS-03250, MFP-UPS-325, 357-05-0009, 6354

Totally interchangeable with Style PS1400 PTFE piston seals, Style PS1500 piston seals are molded from tough 60 shore D durometer polyurethane. During the molding process, a .002 in. thick band of molybdenum is molded into the outside diameter of the seal ring for reduced friction. PS1500 piston seals are easily stretched over the piston and recover rapidly with the elimination of the 'cold flow' characteristics found in PTFE seals. Piston diameter 'F' dimensions are given for pistons without wear rings.

SEAL INFORMATION
MATERIAL	POLYURETHANE SEAL RUBBER ENERGIZER
TEMPERATURE RANGE	-40° to +200° F
PRESSURE RANGE	0 to 5,000 PSI
SPEED	3 FT/SEC
PART NUMBER	(Piston Seal)(Type of Seal) - (Size)

Product	PS1500-52
Weight	0.02306900 lbs
A Nom ID	2.856
B Nom OD	3-1/4
C Nom Height	.115
H Groove Diameter	2.856
D Groove Width	.130
Bore	3.250
I Piston Diameter	3.246
C Height	.115
CS1 Ring Cross Section	.115
Temperature Range	-40° TO +200°F
Pressure Range	0 TO 5,000 PSI
Speed	3 FT/SEC

Piston Seal, 3.25 X .115

PS1500-52 is a PS1500 Piston Seal Assembly

ID 2.856 X OD 3.250 X Height 0.115 MFG # AS800E-52P, AUS-03250, MFP-UPS-325, 357-05-0009, 6354
