Piston Seal, 3"X.115"

Piston Seal, 3"X.115"

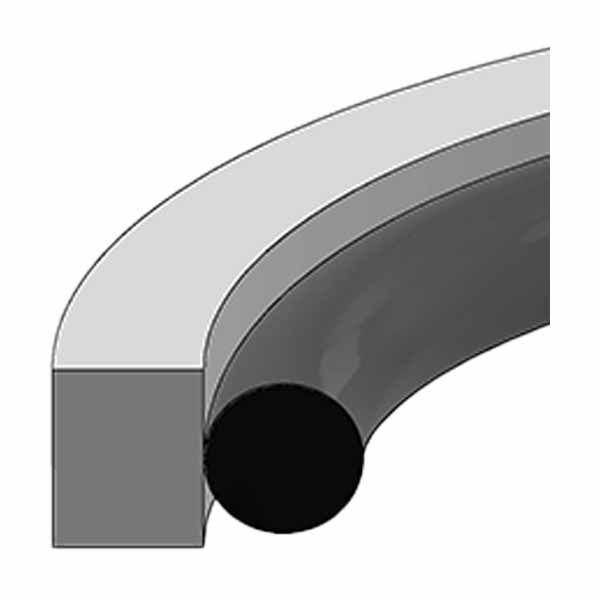

The PS1500-48 Piston Seal, 3" x .115" is a high-performance polyurethane piston seal assembly engineered for hydraulic cylinders operating under demanding pressure conditions. Molded from durable 60 Shore D polyurethane, this PS1500 style seal features a .002" molybdenum band molded into the outer diameter to reduce friction and enhance service life. Designed as a direct interchange for PS1400 PTFE piston seals, it eliminates cold-flow concerns while providing rapid recovery and reliable sealing performance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: PS1500-48
• Seal Type: PS1500 Piston Seal Assembly
• Material: Polyurethane seal with rubber energizer
• Durometer: 60 Shore D
• Nominal ID (A): 2.606 in
• Nominal OD (B): 3.000 in
• Nominal Height (C): 0.115 in
• Groove Diameter (H): 2.606 in
• Groove Width (D): 0.130 in
• Piston Diameter (I): 2.996 in
• Ring Cross Section (CS1): 0.115 in
• Temperature Range: -40°F to +200°F
• Pressure Range: 0 to 5,000 PSI
• Maximum Speed: 3 ft/sec
• Design Feature: Molded .002" molybdenum friction-reducing band
• Interchangeable With: PS1400 PTFE piston seals
• MFG Cross References: AS800E-48P, AUS-03000, MFP-UPS-300, 7T66P030, HT15030 (1), HT15030, DAGI300260-130
• Weight: 0.01976 lb

Ideal For

• Hydraulic cylinders operating up to 5,000 PSI
• Applications requiring reduced friction and improved wear life
• Systems where PTFE cold flow is a concern
• Industrial and mobile hydraulic equipment

When high pressure and smooth operation need to work together, this PS1500 seal is built to hold strong and run efficiently.
