Piston Seal

Piston Seal

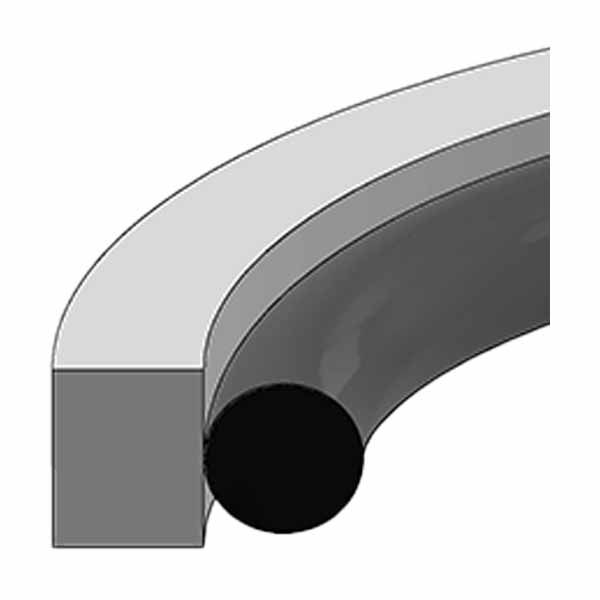

The PS1500-56 Piston Seal Assembly is a high-performance polyurethane piston seal engineered for hydraulic applications requiring durability, reduced friction, and reliable pressure retention. Molded from tough 60 Shore D durometer polyurethane, this seal features a .002" molybdenum band molded into the outside diameter to minimize friction and enhance service life. Designed as a direct interchange for PS1400 PTFE piston seals, it stretches easily over the piston and rapidly recovers without the cold-flow characteristics associated with PTFE materials.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: PS1500-56
• Seal Type: PS1500 Piston Seal Assembly
• Material: Polyurethane seal with rubber energizer
• Durometer: 60 Shore D
• Nominal ID (A): 3.106 in
• Nominal OD (B): 3.500 in (3-1/2")
• Nominal Height (C): 0.115 in
• Groove Diameter (H): 3.106 in
• Groove Width (D): 0.130 in
• Piston Diameter (I): 3.496 in
• Ring Cross Section (CS1): 0.115 in
• Temperature Range: -40°F to +200°F
• Pressure Range: 0 to 5,000 PSI
• Maximum Speed: 3 ft/sec
• Design Feature: Molded .002" molybdenum friction-reducing band
• Interchangeable With: PS1400 PTFE piston seals
• MFG Cross References: AS800E-56P, AUS-03500, MFP-UPS-350, 357-02-0035, 81-5018, 6360
• Weight: 0.0098 lb

Ideal For

• Hydraulic cylinders operating up to 5,000 PSI
• Applications requiring reduced friction and rapid seal recovery
• Systems where PTFE cold flow is a concern
• Industrial and mobile hydraulic equipment

When high pressure meets high performance, this PS1500 seal is built to hold strong and run smooth.
