Piston Tee Seal w/Lock Ring, 2"

Piston Tee Seal w/Lock Ring, 2"

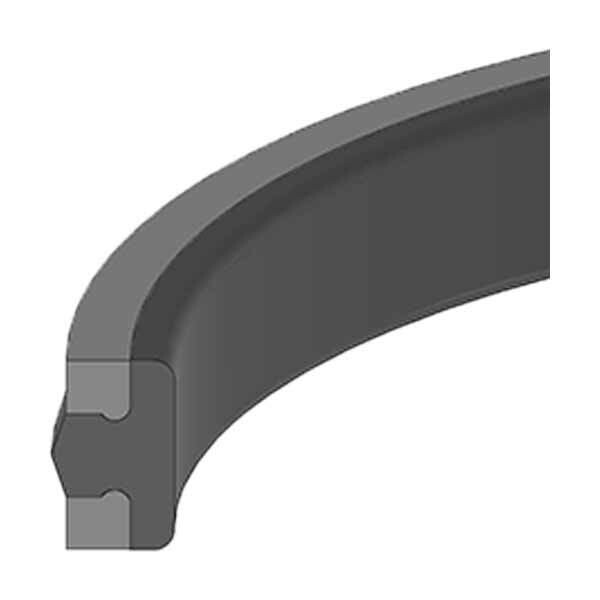

The TP024L Piston Tee Seal w/ Lock Ring is a zero-drift bi-directional piston seal engineered for dependable performance in dynamic hydraulic applications. Built with a 70 Shore A Buna-N (NBR) sealing element and hard plastic anti-extrusion back-ups, this Style TP-L seal is designed to retrofit standard O-ring and T-seal grooves. The locking back-up rings simplify installation while enhancing extrusion resistance—because a seal should stay put, even under pressure from both directions.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: TP-326-L (TP024L)
• Product Type: Piston Tee Seal with Lock Ring
• Seal Style: TP-L Zero Drift Design
• Material (Seal): 70A Buna-N (NBR)
• Back-Ups: Hard Plastic Locking Anti-Extrusion Rings
• Nominal Inside Diameter (A): 1-5/8"
• Nominal Outside Diameter (B): 2.000"
• Nominal Height (C): 0.28"
• Groove Diameter (H): 1.627"
• Groove Width (D): 0.280"
• O-Ring Dash Size Equivalent: -326
• Bore Diameter: 2.000"
• Temperature Range: -35°F to +220°F
• Pressure Range: 0 to 5,000 PSI
• Maximum Speed: 3 ft/sec
• Weight: 0.012 lb

Ideal For

• Hydraulic cylinders requiring bi-directional pressure sealing
• Applications needing zero-drift piston performance
• Systems operating up to 5,000 PSI
• Retrofits into standard O-ring or T-seal grooves
• Installations where extrusion resistance and simplified installation are important
