Poly Single Union 3-Way Ball Valve, 1-1/4"

Poly Single Union 3-Way Ball Valve, 1-1/4"

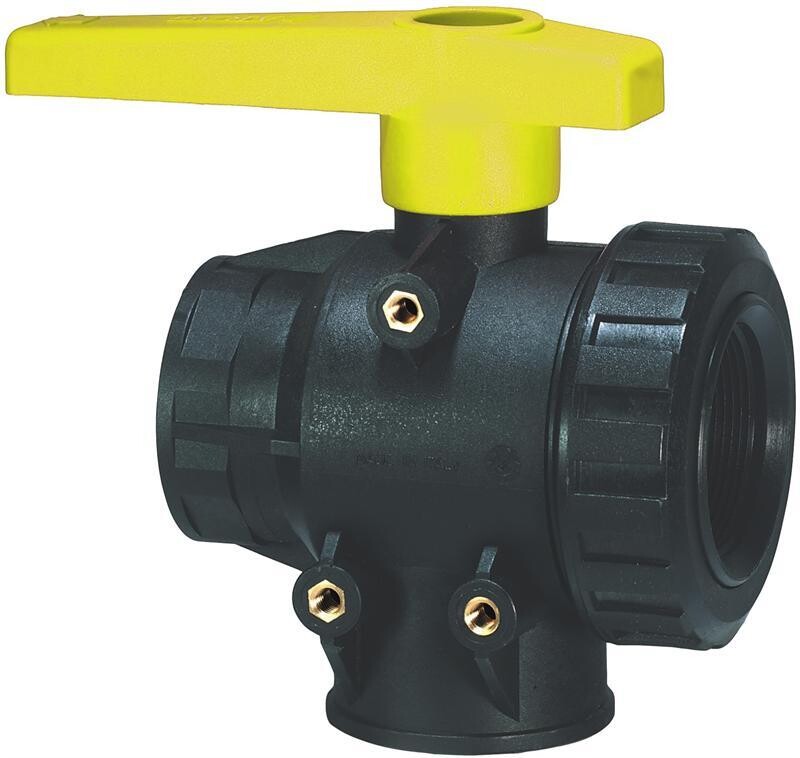

The 125SUBV3 Poly Single Union 3-Way Ball Valve is a heavy-duty, glass-reinforced polypropylene flow control valve built for agricultural fluid handling where durability and chemical resistance matter. With FNPT x FNPT connections, Teflon® seats, and EPDM O-rings, it provides tight sealing and smooth operation for water transfer and sprayer/pump/hose applications, while supporting high flow up to 425 GPM.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 125SUBV3
• Product Type: 3-way ball valve (single union)
• Nominal Size: 1-1/4"
• Connections: 1-1/4" FNPT x 1-1/4" FNPT
• Body Material: Glass reinforced polypropylene
• Seats / Seals: Teflon® seats with EPDM O-rings
• Max Flow: 425 GPM
• Max Pressure: 240 PSI (sizes below 2")
• Max Operating Temperature: 150°F
• Primary Purpose: Control fluid flow throughout the application
• Typical Uses: Water transfers with sprayers, pumps, hoses, and other ag fluid applications

Ideal For

• Agricultural water and fluid transfer systems needing a 3-way control valve
• Sprayer and pump plumbing where smooth operation and tight sealing are important
• Applications exposed to harsher chemicals where reinforced polypropylene helps resist damage
• High-flow setups up to 425 GPM
• Operators who want service-friendly plumbing with a single union design
