Posi Lock Gear Puller, 17Ton 3 Jaw

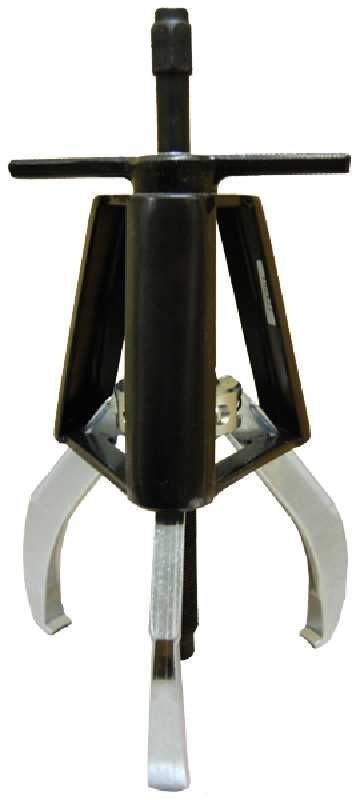

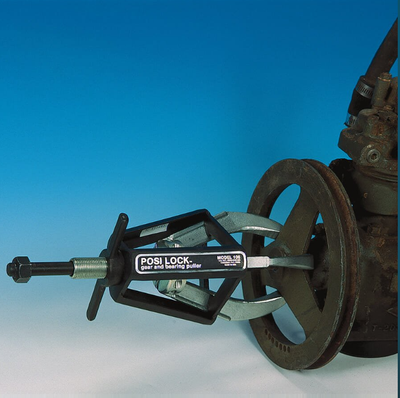

The Posi Lock Model 108 Gear Puller is a powerful and reliable 17-ton, 3-jaw puller designed for safe, controlled removal of gears, bearings, pulleys, wheels, and other press-fit components. Engineered with Posi Lock’s patented “Safety Cage” jaw system, this puller maintains jaw alignment and prevents slippage—greatly improving safety and efficiency during heavy pulling applications.

With a wide spread range, generous reach, and robust construction, the Model 108 is ideal for industrial maintenance, equipment repair, machine shops, and agricultural service work.

Country of Origin: USA

---

Key Features / Specifications

• Model: 108
• Design: 3-jaw manual gear puller
• Capacity: 17 ton (151 kN)

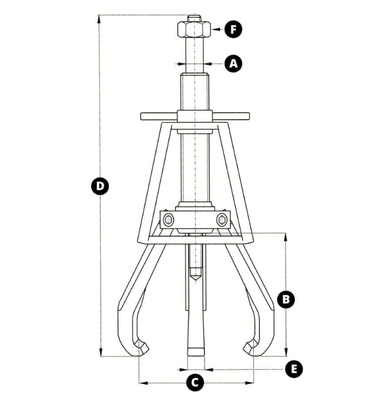

• Reach (B): 8 in (203 mm)
• Spread range (C): 0.75 to 12 in (19 to 305 mm)
• Center bolt diameter (A): 0.75 in (19 mm)
• Overall length (D): 16.25 in (412.8 mm)
• Jaw width (E): 0.88 in (22.2 mm)
• Hex socket size (F): 1 in (25.4 mm)
• Maximum torque: 220 ft-lb (297 N·m)
• Weight: 14 lbs (6.4 kg)

---

Ideal For

• Removing gears, bearings, pulleys, and sprockets
• Industrial, automotive, agricultural, and heavy-equipment service
• Shops requiring safe, high-capacity pullers with superior gripping force
• Mechanics needing a dependable, USA-made 17-ton puller
