Posi Lock Gear Puller, 20Ton 3 Jaw

Posi Lock Gear Puller, 20Ton 3 Jaw

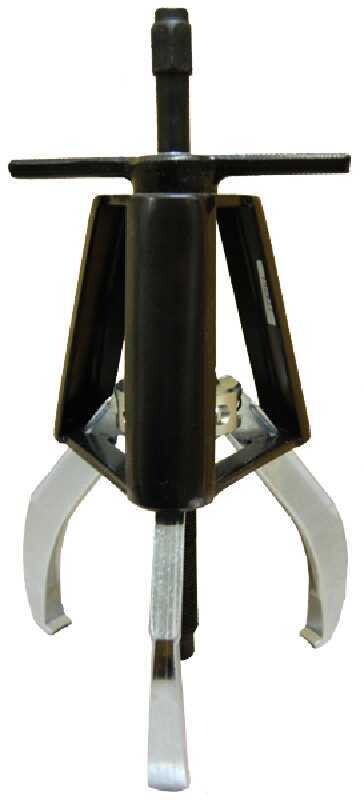

The Posi Lock OC110 20 Ton 3-Jaw Gear Puller is a powerful, precision-built pulling tool designed to handle stubborn gears, pulleys, bearings, and more without slipping or damaging components. Engineered with a caged jaw system for fast setup and secure grip, this puller delivers vice-like holding power while keeping everything aligned and safe. With 20 tons of pulling force, a wide spread range, and thoughtful details like a recessed nut to prevent mushrooming, this tool replaces a whole lineup of specialty pullers—basically the multitool of the puller world, but with serious muscle.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: OC110
• Brand: Posi Lock
• Product Type: 3-jaw gear and bearing puller
• Capacity: 20 ton (178 kN)
• Jaws: 3
• Spread Range (C): 1" to 15" (25–381 mm)
• Reach (B): 9.67" (245 mm)
• Overall Length (D): 20.41" (518.4 mm)
• Jaw Width (E): 1" (25.4 mm)
• Center Bolt Diameter (A): 0.75" (19 mm)
• Hex Socket Size (F): 1" (25.4 mm)
• Maximum Torque: 275 ft-lb (372 N·m)
• Weight: 16 lbs (7.3 kg)
• Design Features:
  • Caged jaw system for fast setup and improved safety
  • T-handle adjustment locks jaws precisely in place
  • Forward-positioned leverage for strong, slip-resistant pulling
  • Recessed nut design prevents mushrooming and deformation
  • Optimized center bolt threads reduce effort under high torque

Ideal For

• Removing gears, pulleys, bearings, and bushings without damage
• Applications that typically require multiple specialty tools—this one covers them all
• Automotive and mechanical work including harmonic balancers, steering wheels, brake drums, and pitman arms
• Shops needing high-capacity, reliable pulling force with controlled precision
• Anyone tired of pullers slipping at the worst possible moment—this one actually holds on for dear life
