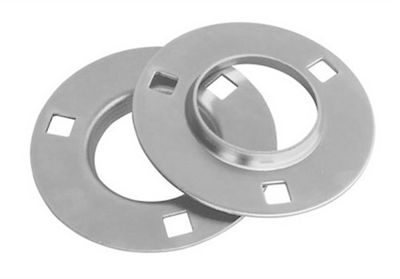

Pressed Steel Flangettes, 206 62MM Bore

Pressed Steel Flangettes, 206

PF206 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt flange bearing housing. Our PF206 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF206 flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts.

PF206 Housing Dimensions

• Part #: PF206
• For Shaft Diameters: 1-1/16", 1-1/8", 1-3/16", 1-1/4"
• Min. Frame Opening (A): 2-13/16"
• Flange Dia. (B): 4-7/16"
• Flange Shoulder Width (C): 11/16"
• Stock Thickness (G): 0.104"
• Bolt Size: 3/8
• Bolt Hole Circle Dia. (D): 3-9/16"
• Hole Width: 13/32"
• Fafnir Part #: 62MS
• SKF Part #: F-62
• MRC Part #: 62MS-3
• New Departure Part #: FL62
