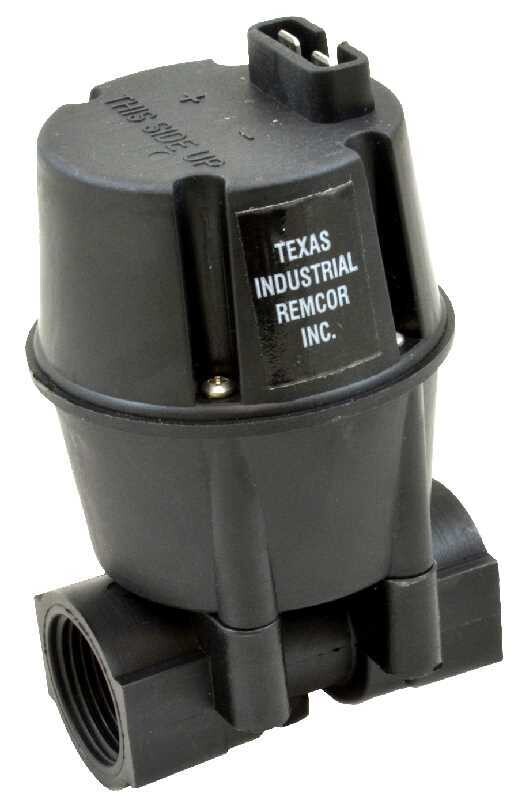

Pressure Regulating Valve, 3/4" 50Gpm

Pressure Regulating Valve, 3/4" 50Gpm

The 1560A Pressure Regulating Valve is a 3/4" electric sprayer pressure regulator designed for precise, dependable pressure control up to 50 GPM in demanding chemical application environments. It features a precision high-torque motor with gear reduction and a high-strength, heavy-duty valve body built from chemical-resistant glass-filled nylon, with a stainless steel motor shaft and butterfly plus a Viton seal for chemical durability. With a low 50 mA current draw at 12V and controlled adjustment speed (1 RPM at 12V / 0.5 RPM at 6V), it can be used as either a bypass regulator or a throttling valve, with a close-tolerance butterfly and 3/4" NPT ports.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 1560A
• Product Type: Electric sprayer pressure regulating valve / pressure regulator
• Port Size / Thread: 3/4" NPT
• Orifice Size: 3/4"
• Max Flow Rate: Up to 50 GPM
• Max Recommended Pressure: 150 PSI
• Motor / Drive: Precision high-torque motor with gear reduction
• Current Draw: 50 mA at 12V
• Adjustment Speed: 1 RPM at 12V, 0.5 RPM at 6V
• Valve Design: Close-tolerance butterfly
• Operating Modes: Bypass regulator or throttling valve
• Body Material: Chemical-resistant glass-filled nylon
• Internal Components: Stainless steel motor shaft and butterfly
• Seal Material: Viton
• Duty Rating: High-strength body for heavy-duty service

Ideal For

• Electric sprayer systems needing remote/automated pressure regulation
• Applications up to 50 GPM where stable pressure control matters
• Chemical handling environments that benefit from glass-filled nylon, stainless internals, and Viton sealing
• Systems requiring a low current draw regulator for 12V control circuits
• Installations using the valve as either a bypass regulator or a throttling valve with 3/4" NPT plumbing
