PTO Cross & Bearing Kit, 2400-Series 32MM Cap Dia. X 76MM

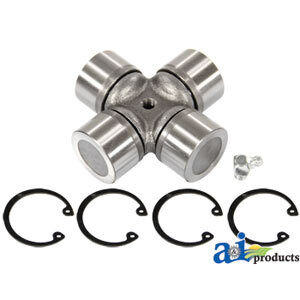

PTO Cross and Bearing Kit, Walterscheid 2400-Series

The A-W312410-A PTO Cross and Bearing Kit is a Walterscheid 2400-series U-joint kit sized 32 mm cap diameter x 76 mm span, designed for dependable PTO driveline performance. It features a center-located grease zerk for easy servicing and uses a snap ring located in the yoke (external snap ring style). This kit fits Walterscheid W & WWE series drivelines and is rated up to 80 HP @ 1000 RPM and 52 HP @ 540 RPM.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-W312410-A
• Alternate / Reference Numbers: 2007676 / 200-7676
• Brand / Fitment: Walterscheid — fits W & WWE series
• Series: 2400-Series
• Product Type: PTO cross and bearing kit (U-joint kit)
• Bearing Cap Diameter: 32 mm (1.26")
• Bearing Span (Overall Width): 76 mm (2.98")
• Snap Ring Location: External (snap ring located in yoke)
• Grease Fitting: Grease zerk in center
• Kit Type: P
• Power Rating: 80 HP @ 1000 RPM / 52 HP @ 540 RPM
• Lubrication Interval: 8.00
• Shipping Dimensions: 2.988" L x 1.26" H x 2.988" W (8 cm L x 3 cm H x 8 cm W)
• Shipping Volume: 11.25 in³ (184 cm³)
• Weight: 1.45 lb (1 kg)

Ideal For

• Replacing worn PTO U-joints on Walterscheid 2400-series drivelines
• Walterscheid W & WWE series PTO shafts needing a 32 x 76 mm cross & bearing kit
• High-load PTO applications up to 52 HP @ 540 RPM or 80 HP @ 1000 RPM
• Maintenance setups that prefer center-grease servicing and yoke-mounted snap rings
