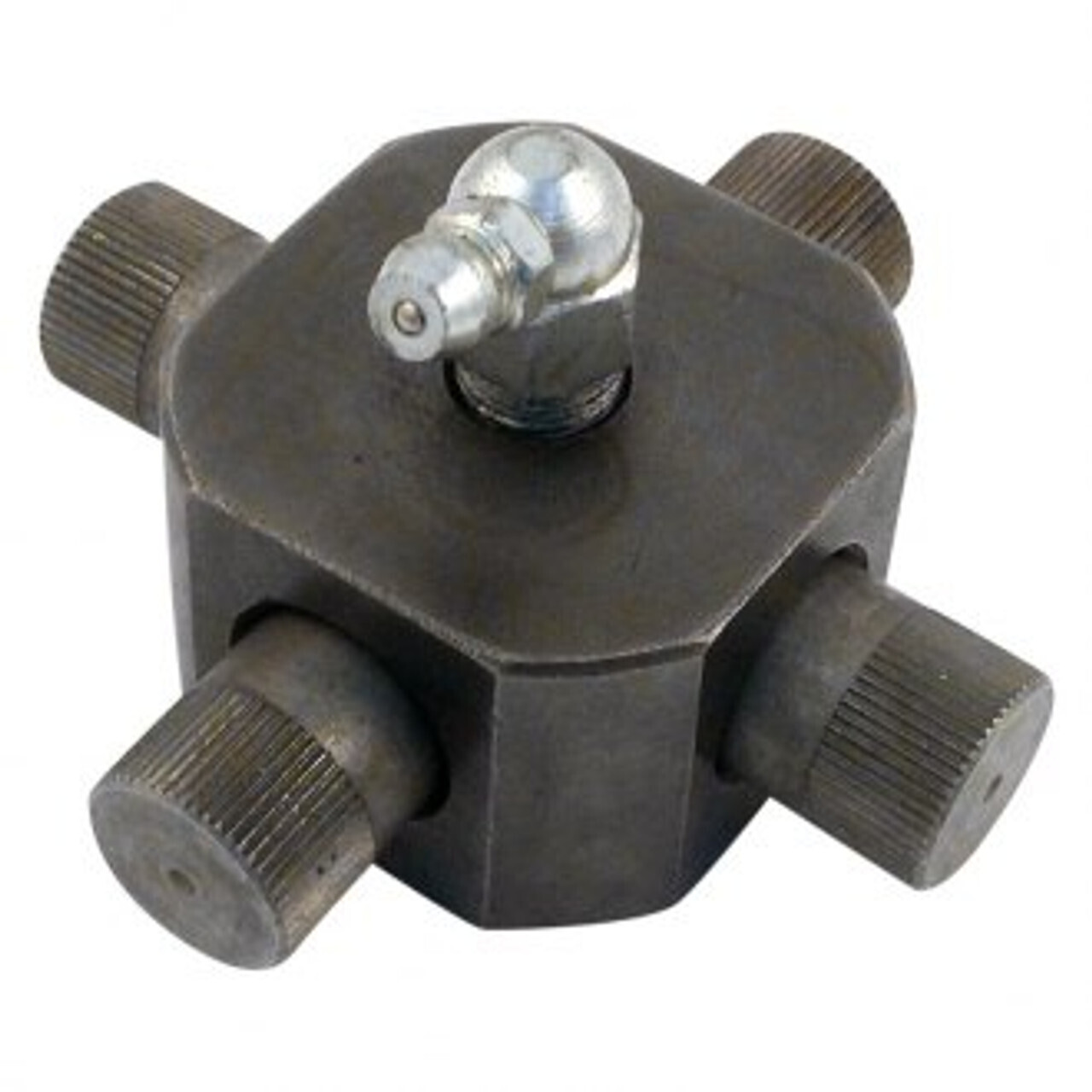

PTO Cross And Pin Kit, W-Series

W-Series PTO Cross And Pin Kit

The 200-0700 W-Series PTO Cross and Pin Kit is a W-series cross and bearing kit featuring a block-and-pin plane bearing design with a center grease fitting for straightforward servicing. With a compact 0.56" bearing diameter and 1.50" bearing span, it’s built for tight PTO applications—because sometimes the smallest parts are the ones that decide whether you’re working or walking.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 200-0700
• Product Type: PTO cross and pin kit
• Series: W-Series
• Design: Block and pin plane bearing
• Greasing: Center grease fitting
• Bearing Diameter: 0.56" (14 mm)
• Bearing Span / Width: 1.50" (38 mm)
• Height: 0.56" (14 mm)
• Length: 1.50" (38 mm)
• Snap Ring Location: None
• Weight: 0.76 lb
• Shipping Dimensions: 1.5" L × 0.56" H × 1.5" W (approx. 4 cm × 1 cm × 4 cm)
• Shipping Volume: 1.26 in³ (21 cm³)
• Shipping Weight: 0.76 lb

Ideal For

• Replacing W-series PTO cross/pin components with a block-and-pin style setup
• Compact PTO applications needing a 0.56" x 1.50" cross kit
• Maintenance routines that benefit from a center grease fitting
• Repairs where matching the no snap-ring configuration is required
