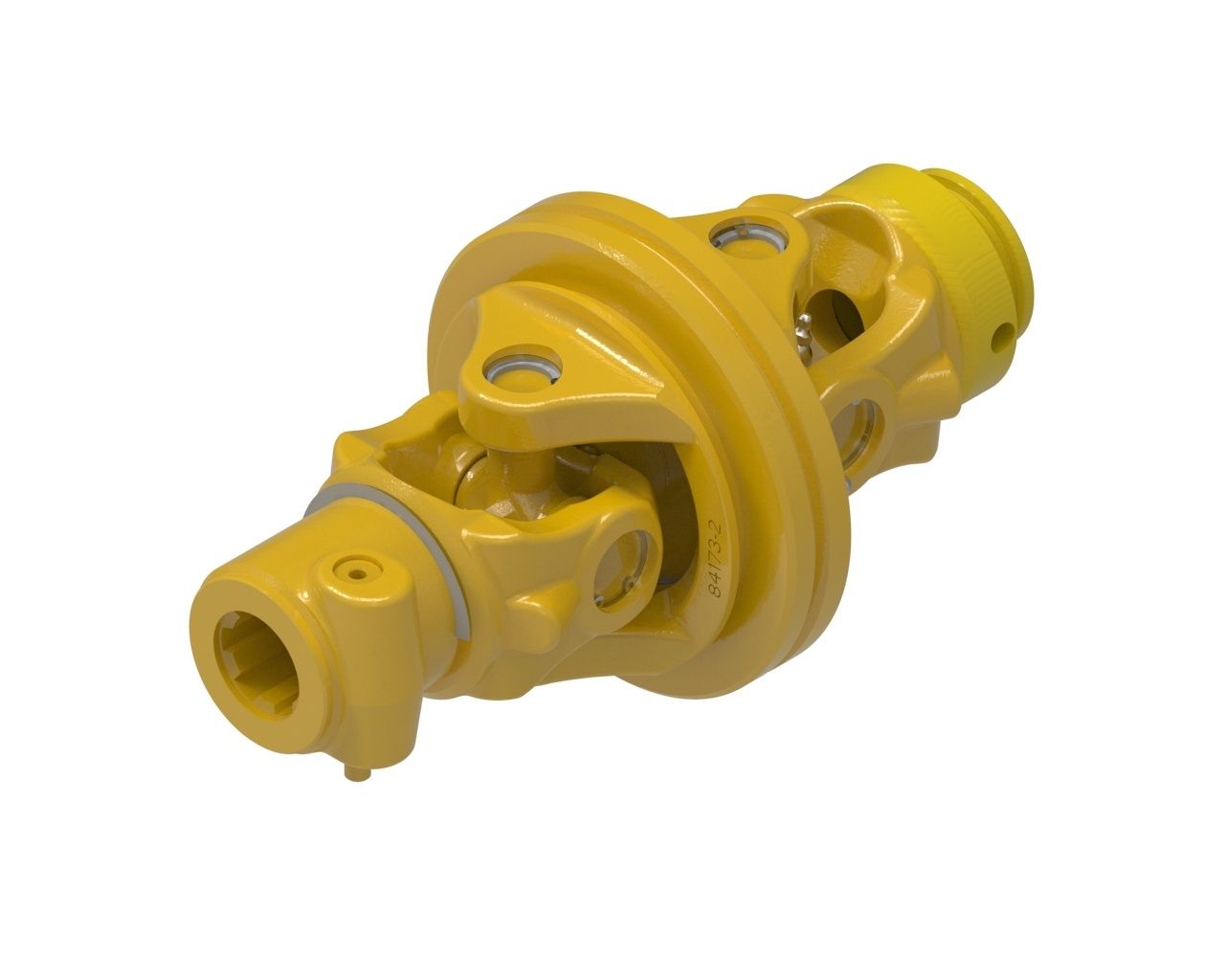

PTO CV Joint Assy, 80-Deg 2380-Series X 1-3/8-6Spl.

PTO CV Joint Assy, 80-Deg 2380-Series X 1-3/8-6Spl., 34.5mm Lemon Shafting

The Weasler 15507406 PTO CV Joint Assembly is a heavy-duty, wide-angle driveline component built to keep power flowing smoothly—even when your equipment isn’t perfectly lined up. Designed for constant velocity operation up to 80° angles, this joint delivers consistent rotational speed with reduced vibration, making it ideal for demanding agricultural applications. Built with precision-engineered steel components and interchangeable yokes, it’s made to handle tough field conditions without missing a beat—because downtime in the middle of a job is never convenient.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 15507406
• Brand: Weasler
• Product Type: CV wide angle PTO joint assembly
• Series: 2380 Series
• Angle Capability: Up to 80° operating angle
• Input Connection: 1-3/8" – 6 spline (quick disconnect)
• Output Connection: 34.5 mm lemon shaft (roll pin connection)
• Bore Size: 35 mm (both ends)
• Driveline Type: Constant velocity (CV) for smooth power transfer
• Horsepower Rating:
  • 41 HP @ 540 RPM
  • 63 HP @ 1000 RPM
• Overall Length: 11.74 inches
• Compressed Length: 3.74 inches
• Outside Diameter: 6.10 inches
• Weight: 17.64 lbs
• Construction: High-strength steel yokes and components
• Yoke Design: Interchangeable with standard Weasler and market yokes
• Bearing Kits: High torque capacity, upgradeable to E-Kits
• Guard Compatibility: Fits Easy Lock guard system with full coverage at max angles
• Durability Features:
  • UV and ozone-resistant guard material
  • Cold-weather rated to -35°C
  • 360° friction weld on guard bell
• Debris Protection: Through-bore design reduces buildup inside shaft

Ideal For

• Agricultural equipment requiring wide-angle PTO operation
• Applications where consistent speed and reduced vibration are critical
• Large farms and contractors using heavy-duty PTO-driven implements
• Replacing worn or damaged CV joints in high-performance drivelines
• Anyone who needs their equipment to keep spinning smoothly—no matter the angle or terrain
