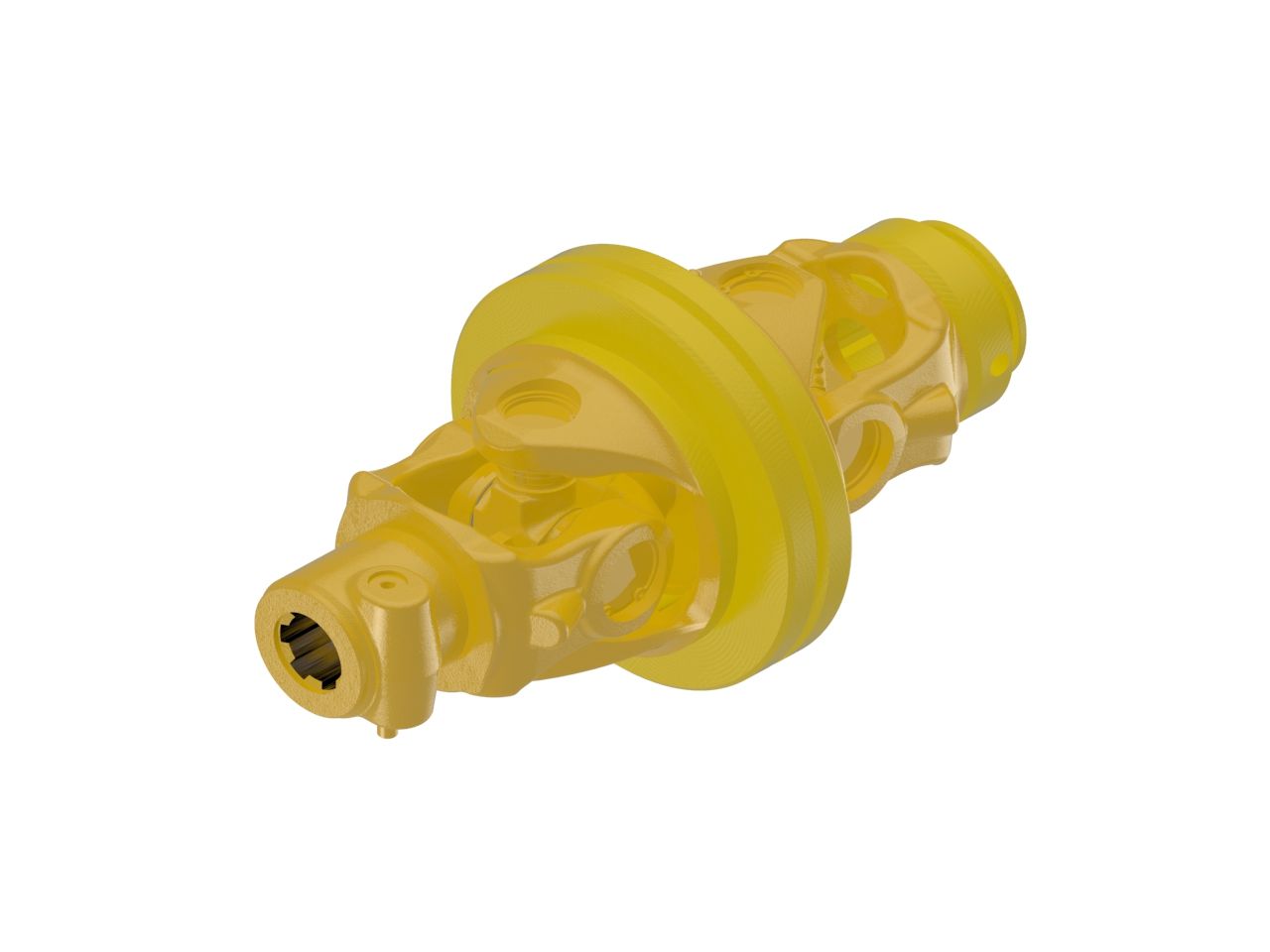

PTO CV Joint Assy, 80-Deg 2480-Series

PTO CV Joint Assy, 80-Deg Cat 4 W2480-Series X 1-3/8"-6, 39.5mm Lemon Shafting

The 15507640 PTO CV Joint Assembly (Weasler W2480 Series) is a heavy-duty, wide-angle constant velocity joint built to keep power flowing smoothly—even when your equipment is working at extreme angles. Designed for high-performance PTO driveline systems, this assembly allows for constant rotational speed with minimal vibration, making it ideal for demanding agricultural and turf applications. With rugged steel construction, interchangeable components, and compatibility with industry-standard systems, it’s built to handle tough jobs without flinching (or shaking itself apart).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 15507640
• Series: Weasler W2480 Series
• Product Type: PTO constant velocity (CV) joint assembly
• Category: Category 4
• Angle Capability: Up to 80° wide-angle operation
• Shafting Type: 39.5 mm lemon profile
• Connection 1: 1-3/8" 6-spline (quick disconnect)
• Connection 2: Roll pin connection
• Material: High-strength steel construction for durability
• Torque Capacity: Designed for high-load, heavy-duty PTO applications
• Horsepower Rating:
  • 87 HP @ 1000 RPM
  • 57 HP @ 540 RPM
• Overall Length: 12.42" (315 mm)
• Compressed Length: 4.09" (104 mm)
• Outside Diameter: 6.53" (166 mm)
• Weight: 23.15 lbs (11 kg)
• Yoke Design: Interchangeable with standard Weasler and industry yokes
• Bearing Kits: High-strength cross & bearing kits for extended life (upgradeable to E-Kits)
• Guard Compatibility: Fits Easy Lock guard system
  • 360° friction weld on guard bell
  • UV and ozone-resistant black coating
  • Cold-weather rated to -35°C
  • Meets or exceeds applicable safety standards
• Performance Benefit: Maintains constant velocity through variable angles with reduced vibration and wear

Ideal For

• PTO-driven equipment requiring smooth power transfer at steep operating angles
• Agricultural machinery used in heavy-duty, continuous operation
• Large farms and contractors needing reliable, high-performance driveline components
• Applications where reduced vibration and longer component life are critical
• Anyone who wants their PTO shaft to handle sharp angles without sounding like it’s about to file a complaint
