PTO CV Joint Assy, 80-Deg Cat 6 W2580-Series X 1-3/8"-6

PTO CV Joint Assy, 80-Deg Cat 6 W2580-Series X 1-3/8"-6, 51mm Star Shafting

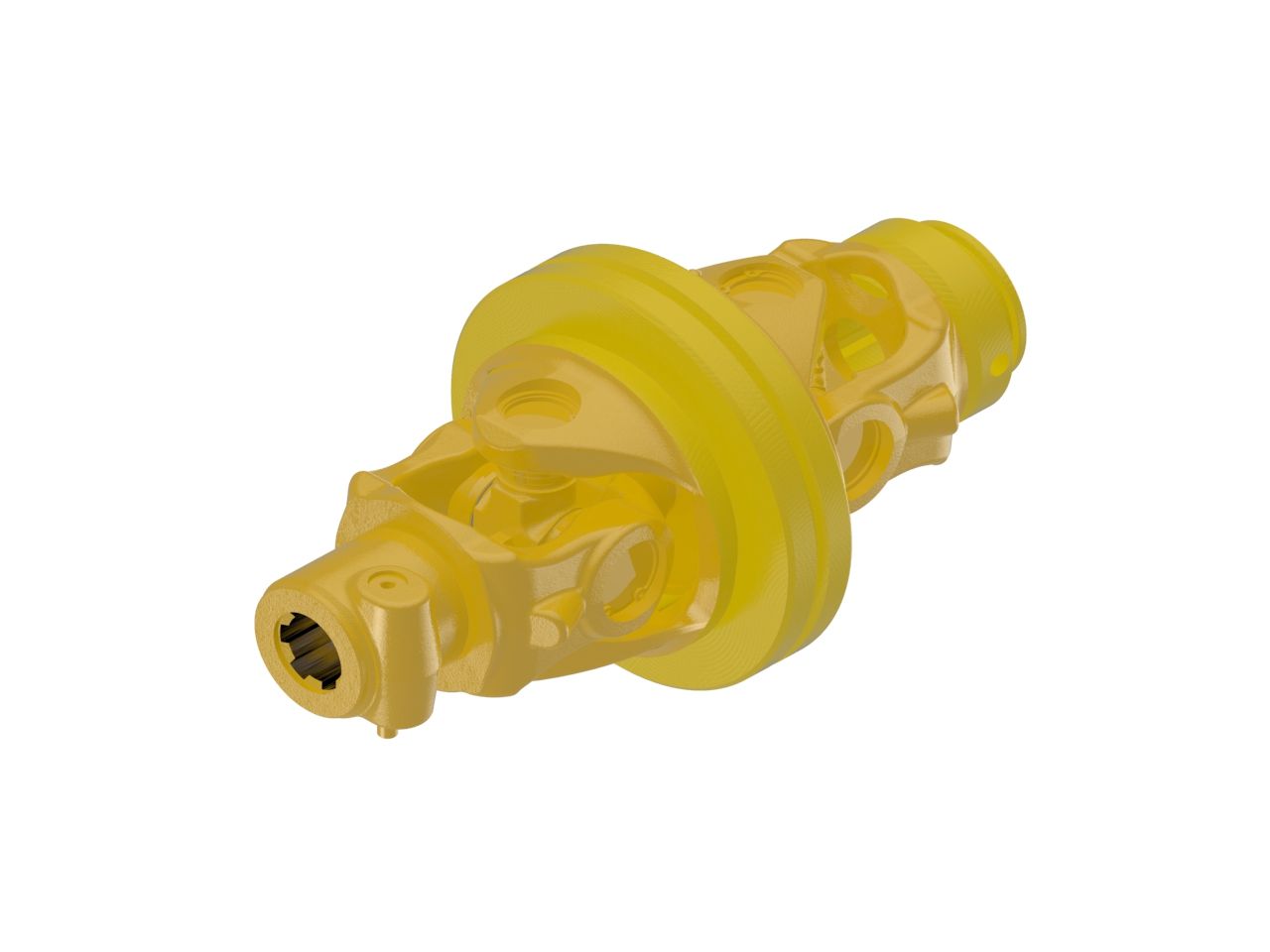

The Weasler 15507951 PTO CV Joint Assembly is a heavy-duty, wide-angle constant velocity joint engineered for high-horsepower driveline applications where smooth, reliable power transfer is critical. Built for Category 6 PTO systems, it handles extreme operating angles up to 80° while maintaining consistent rotational speed—minimizing vibration, wear, and stress on your equipment. Designed with precision-machined steel components, it’s ready for demanding field conditions where straight lines are more of a suggestion than a reality.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 15507951
• Brand: Weasler
• Series: W2580 Series (Category 6)
• Product Type: PTO constant velocity (CV) joint assembly
• Max Operating Angle: Up to 80° (wide-angle capability)
• Horsepower Rating:
  • 77 HP @ 540 RPM
  • 119 HP @ 1000 RPM
• Overall Length: 13.68"
• Compressed Length: 4.65"
• Outside Diameter: 6.65"
• Weight: 34.65 lbs

Connection Details:

• Connection 1:
  • 1-3/8" – 6 spline (Quick Disconnect)
• Connection 2:
  • 51 mm star shaft (Roll Pin connection)

Construction & Design:

• High-strength steel construction for durability under heavy loads
• Constant velocity design maintains smooth, even power transfer at varying angles
• Reduced vibration and friction compared to standard U-joint systems
• Interchangeable yokes compatible with Weasler and standard industry options
• Through-bore design helps prevent debris buildup inside the assembly
• Cross & bearing kits built for high torque capacity and extended service life

Guard System Compatibility:

• Compatible with Weasler Easy Lock Guard System
  • Full 360° friction weld on guard bell
  • UV and ozone-resistant coating
  • Cold-weather rated to -35°C
  • Full coverage at maximum articulation angles
  • Quick installation and removal

Ideal For

• High-horsepower PTO driveline systems (Category 6 applications)
• Equipment operating at extreme angles or uneven terrain
• Large-scale farming and contractor operations
• Applications requiring smooth, vibration-free power transmission
• Anyone who wants their driveline running smooth—even when the terrain isn’t doing them any favors
