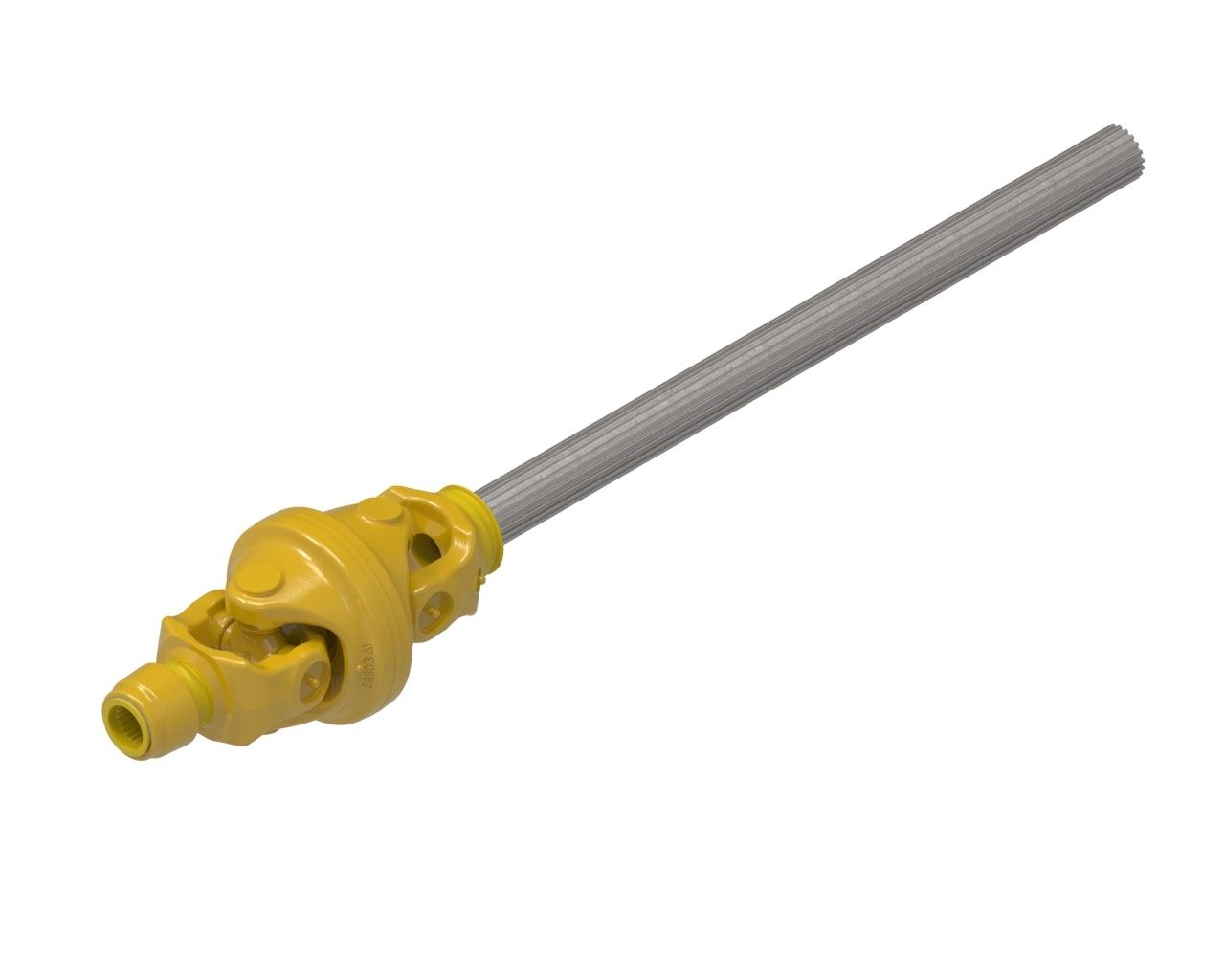

PTO Shaft Sub-Assy, #55 80Deg CV w/27" Shaft

Tractor Half CV PTO Shaft Assy, #55

The 15656800 Tractor Half CV PTO Shaft Assembly (#55) is a heavy-duty, wide-angle driveline built to deliver smooth, uninterrupted power through demanding operating conditions. Featuring an 80° constant velocity (CV) joint, it eliminates the vibration and speed fluctuations common with standard PTO shafts, allowing equipment to operate efficiently even at sharp angles. Built with high-strength components and a fully shielded guard system, this shaft is designed for reliability, safety, and long service life—because when your PTO runs right, everything else tends to follow.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 15656800
• Product Type: Tractor half CV PTO shaft assembly (#55 series)
• Shaft Length: 27 inches
• Connection 1: 1-3/8" 21-spline (AUTO-LOK)
• Connection 2: 1-11/16" 20-spline
• CV Joint: 80° wide-angle constant velocity joint
• Horsepower Rating:
  • 117 HP @ 540 RPM
  • 179 HP @ 1000 RPM
• Outside Diameter: 6.5 inches
• Weight: 52 lbs
• Construction: High-quality steel components for strength and durability
• Yokes: Interchangeable with standard and Weasler yokes, featuring cast iron collars and through-bore design
• Cross & Bearing Kits: High torque capacity, long-life design, upgradeable to E-Kits
• Guard System:
  • Easy Lock full-coverage shielding system
  • 360° friction-welded guard bell
  • UV and ozone resistant coating
  • Cold-weather rated to -35°C
• Performance: Constant velocity design maintains smooth, consistent power delivery across wide operating angles

Ideal For

• Implements requiring wide-angle PTO operation such as mowers, balers, and tillage tools
• Applications where smooth power transfer and reduced vibration are critical
• Operators needing a high-horsepower, durable driveline solution
• Equipment setups with extreme articulation or movement angles
• Anyone who prefers their PTO shaft to run smooth and steady—without shaking the whole machine like it’s got something to say about it
