Pto Shaft Weld Yoke, 14-Series

Pto Shaft Weld Yoke, 14-Series

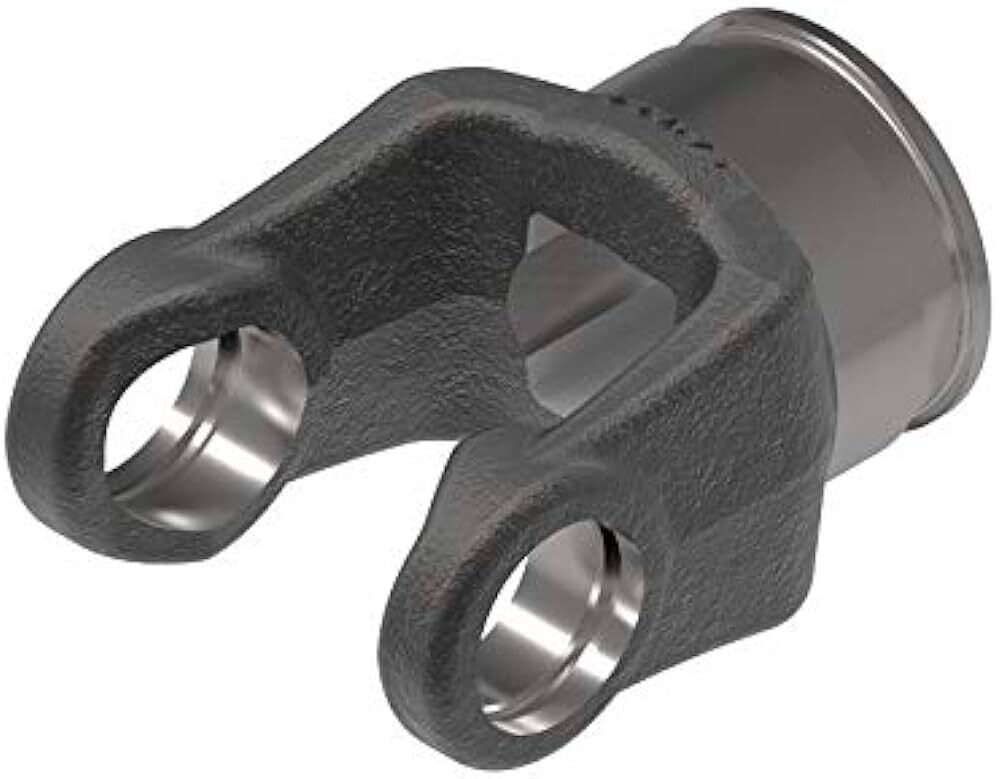

The 300-1400 PTO Shaft Weld Yoke (14-Series) is a yoke weldment assembly designed to provide a secure yoke-to-shaft weld connection for compatible PTO drivelines. Built for Weasler 14-series applications, it features a 1" x 1-1/8" rectangular bore profile and is intended to be welded in place for durable power transfer. Rated for up to 58 HP at 1000 RPM (or 38 HP at 540 RPM), it’s a solid choice for driveline fabrication or replacing worn weld yokes on farm implements and equipment.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-1400
• Product Type: PTO shaft weld yoke / yoke weldment
• Series / Compatibility: 14-Series
• Bore / Profile: 1" x 1-1/8" rectangle (listed as 1 X 1 1/8 RECTANGLE)
• Bore (Metric Equivalent): 28 mm (1.12")
• Connection Type: Weld
• Rated Power @ 1000 RPM: 58 HP (43 kW)
• Rated Power @ 540 RPM: 38 HP (28 kW)
• Overall Length: 86 mm (3.37")
• Height: 86 mm (3.38")
• Outside Diameter: 57 mm (2.25")
• Width: 59 mm (2.31")
• Weight: 1 kg (2.05 lb)
• Shipping Dimensions: 11 cm L × 9 cm H × 6 cm W
• Shipping Volume: 536 cm³ (32.71 in³)
• Shipping Weight: 1 kg (2.05 lb)

Ideal For

• Fabricating or repairing PTO drivelines using a weld-on yoke connection
• Replacing a worn or damaged 14-series weld yoke on farm implements and equipment
• Applications requiring a 1" x 1-1/8" rectangular shaft profile
• Maintenance shops performing driveline rebuilds where correct HP rating and fit are important
• Equipment owners needing a durable, permanent yoke connection via welding
