Pto Shaft Weld Yoke, 35-Series

Pto Shaft Weld Yoke, 35-Series

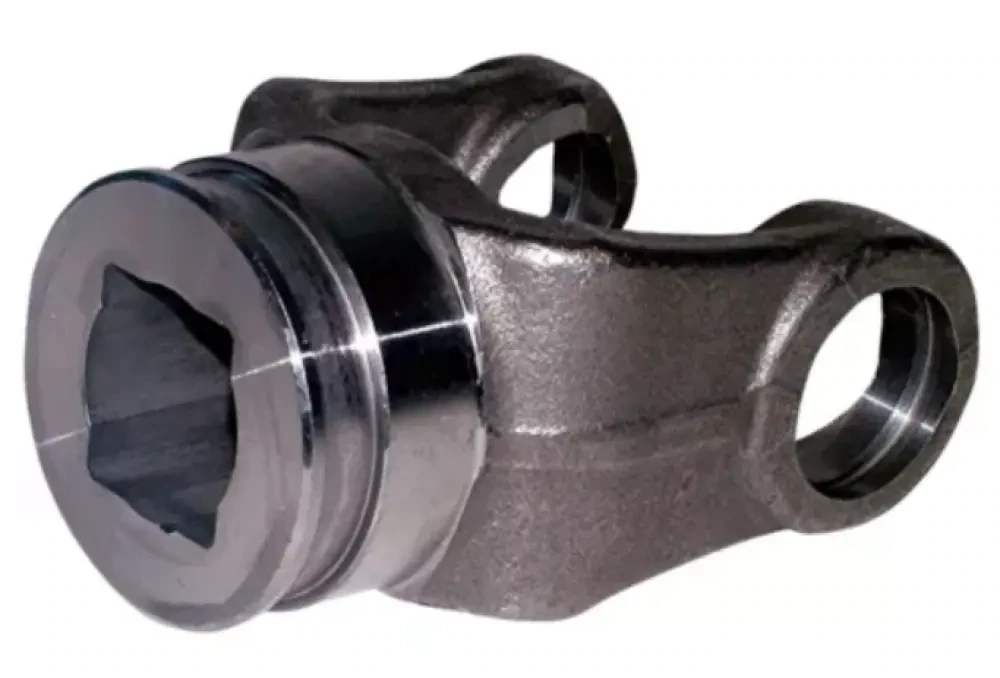

The 300-3500 PTO Shaft Weld Yoke for 35-Series is a heavy-duty yoke weldment assembly designed to create a strong, permanent yoke-to-shaft connection for PTO drivelines. Built for demanding power transmission, it features a 1-3/16" square bore and a weld connection, making it ideal for driveline fabrication and repairs where a secure welded joint is required. Rated for up to 108 HP at 1000 RPM and 70 HP at 540 RPM, it’s well suited for a wide range of agricultural implement applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 300-3500
• Product Type: PTO shaft weld yoke (yoke weldment assembly)
• Series Compatibility: 35-Series
• Bore / Shaft Shape: 1.18 in / 30 mm (1-3/16" Square)
• Connection Type: Weld
• Horsepower Rating @ 1000 RPM: 108 HP (81 kW)
• Horsepower Rating @ 540 RPM: 70 HP (52 kW)
• Overall Length: 4.18 in / 106 mm
• Height: 4.00 in / 102 mm
• Width: 2.34 in / 59 mm
• Outside Diameter: 2.25 in / 57 mm
• Weight: 3.10 lb / 1 kg
• Shipping Dimensions: 5.06 in L × 4.00 in H × 2.34 in W
• Shipping Volume: 47.36 in³ / 776 cm³

Ideal For

• PTO driveline fabrication requiring a weld-on yoke connection
• Replacing a worn or damaged 35-Series weld yoke
• Applications needing reliable power handling at 540 or 1000 RPM
• Shops and farms performing PTO shaft repairs and custom builds
• Equipment using a 1-3/16" square shaft profile requiring a welded joint
