Pto Shaft Weld Yoke, 55-Series

Pto Shaft Weld Yoke, 55-Series

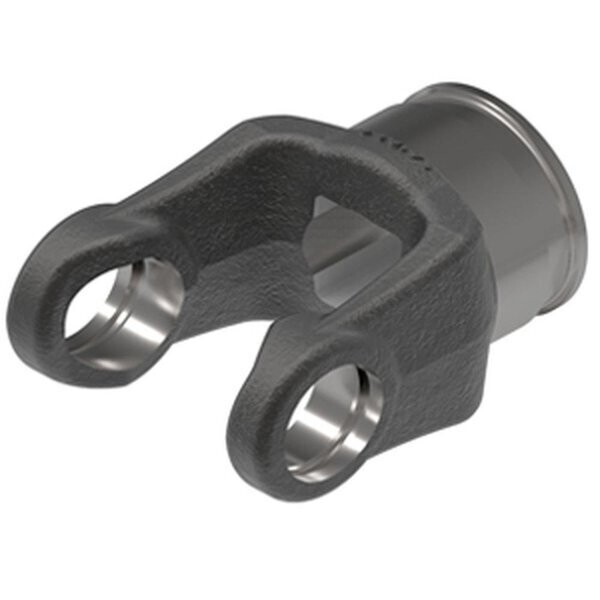

The 300-5500 Weasler PTO Shaft Weld Yoke (55-Series, 1-5/16" square bore) is a heavy-duty weld-on yoke designed for PTO driveline fabrication and repair, providing a secure weld connection for compatible shaft profiles. Built for robust agricultural power transfer, it’s rated for high horsepower at both 540 RPM and 1000 RPM applications.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Weasler
• Part Number: 300-5500
• Product Type: PTO shaft weld yoke
• Series: 55-Series
• Bore 1 Size: 1.31 in (33 mm)
• Bore 1 Profile: 1-5/16" square
• Connection 1: Weld
• Horsepower Rating @ 1000 RPM: 211 HP (157 kW)
• Horsepower Rating @ 540 RPM: 137 HP (102 kW)
• Overall Length: 4.12 in (105 mm)
• Height: 5.13 in (130 mm)
• Outside Diameter: 2.87 in (73 mm)
• Width: 2.63 in (67 mm)
• Item Weight: 5.22 lb (2 kg)
• Shipping Dimensions: 5.21 in L × 5.13 in H × 2.63 in W (13 cm L × 13 cm H × 7 cm W)
• Shipping Volume: 70.29 in³ (1152 cm³)
• Shipping Weight: 5.22 lb (2 kg)

Ideal For

• PTO driveline builds needing a 55-Series weld yoke for a 1-5/16" square shaft
• High-horsepower implement applications running at 540 RPM or 1000 RPM
• Replacement of worn or damaged yokes on compatible Weasler PTO assemblies
• Shops performing PTO shaft fabrication where a weld-on connection is required
