Pto Slip Sleeve, 35-Series 1-11/16" 20-Spline

Pto Slip Sleeve, 35-Series, 44-Series, 55-Series 1-11/16" 20-Spline

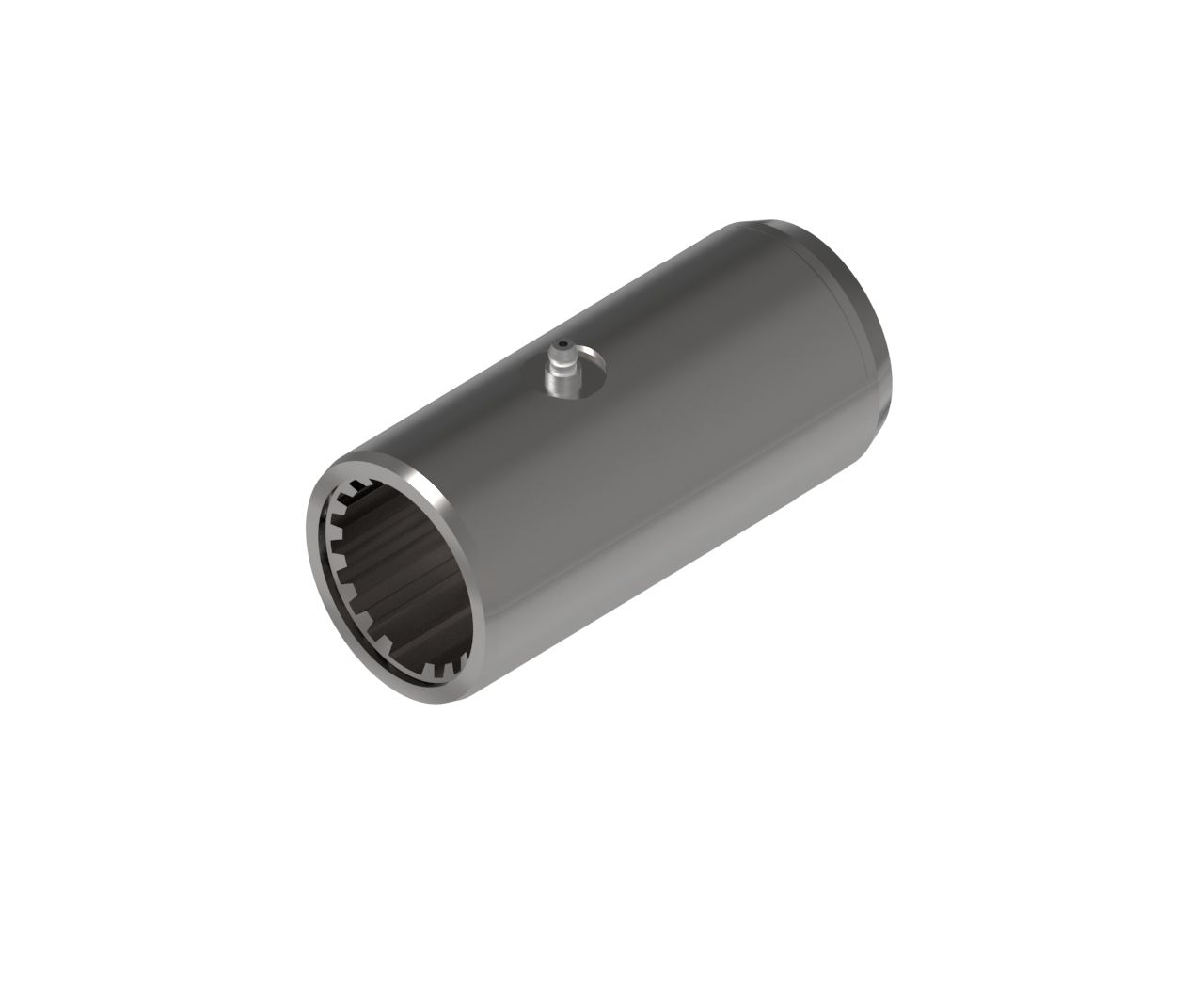

The Weasler PTO Slip Sleeve (505-3500) is designed to let PTO driveline components slip and flex with movement in the application, helping maintain smooth power transfer while accommodating changing angles and length. Built for 35-, 44-, and 55-Series PTO drivelines, it features a 1-11/16" 20-spline bore for spline shaft connections.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Weasler
• Model / Part Number: 505-3500
• Product Type: PTO slip sleeve
• Series Compatibility: 35-Series, 44-Series, 55-Series
• Connection Type: Spline shaft
• Bore / Spline: 1-11/16″, 20-spline (listed bore 1: 1.75″ / 44 mm)
• Overall Length: 5.00″ (127 mm)
• Outside Diameter: 2.25″ (57 mm)
• Shaft Size: 1.68″ (43 mm)
• Tube Bore Diameter: 2.24″ (57 mm)
• Weld Diameter: 2.25″ (57 mm)
• Weight: 2.20 lb (1 kg)
• Shipping Dimensions: 5″ L × 2.25″ H × 2.25″ W (13 cm × 6 cm × 6 cm)
• Shipping Volume: 25.31 in³ (415 cm³)

Ideal For

• PTO driveline repairs where the shaft needs controlled slip/flex movement
• Replacing a worn sleeve on 35/44/55 Series PTO applications
• Farm equipment drivelines that experience changing angles during operation
• Maintaining smoother PTO engagement and reducing binding during movement
