Pto Slip Sleeve, 44-Series

Pto Slip Sleeve, 44-Series

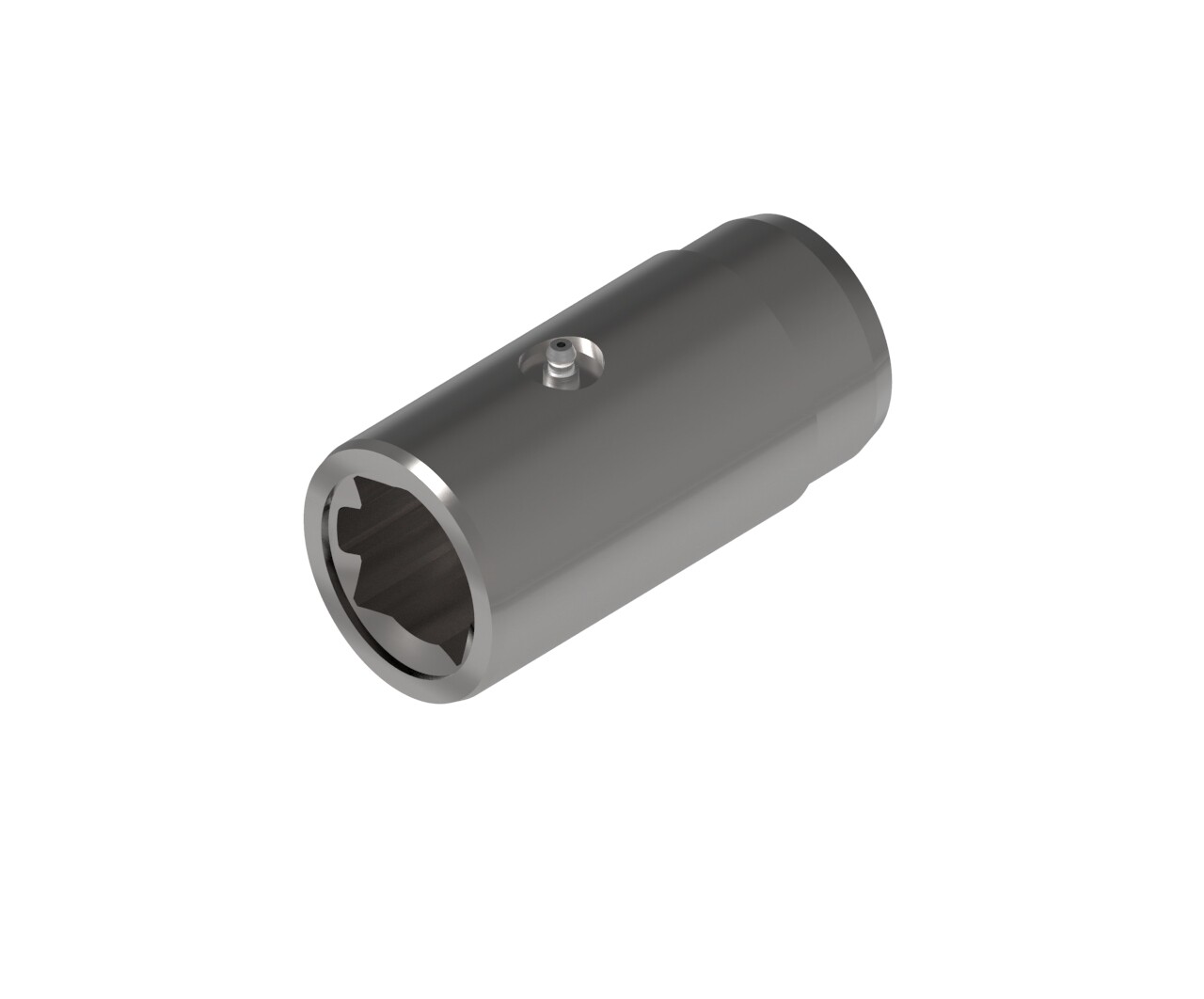

The 500-4400 PTO Slip Sleeve (44-Series) is a driveline slip component that allows a PTO driveshaft to telescope/slip for flexible movement as equipment operates over changing angles and distances. Designed for dependable driveline fit and motion, Weasler slip sleeves are offered in spline and square designs, and this 44-Series sleeve uses a square shaft connection to support smooth driveline travel in compatible PTO applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 500-4400
• Brand / Series: Weasler 44-Series
• Product Type: PTO slip sleeve
• Function: Allows PTO driveshafts to slip/telescope for flexible movement in operation
• Design Availability: Weasler slip sleeves available in spline and square designs
• Connection 1: Square shaft
• Bore / Shaft Size: 1.31 in (33 mm)
• Bore Type: 1-5/16" SQUARE
• Length: 5.00 in (127 mm)
• Outside Diameter: 2.37 in (60 mm)
• Tube Bore Diameter: 2.24 in (57 mm)
• Weld Diameter: 2.25 in (57 mm)
• Weight: 2.70 lb (1 kg)
• Shipping Weight: 2.70 lb (1 kg)
• Shipping Dimensions: 5" L × 2.375" H × 2.375" W (approx. 13 cm L × 6 cm H × 6 cm W)
• Shipping Volume: 28.20 in³ (462 cm³)

Ideal For

• PTO drivelines that require telescoping/slip travel as equipment raises, lowers, or articulates
• Replacing a worn or damaged sleeve on Weasler 44-Series compatible PTO shafts
• Applications using a 1-5/16" square shaft connection
• Equipment builds or repairs where maintaining proper driveline movement helps reduce binding and component stress
