Pto Splined Shaft Weld Yoke, 55-Series

Pto Splined Shaft Weld Yoke, 55-Series

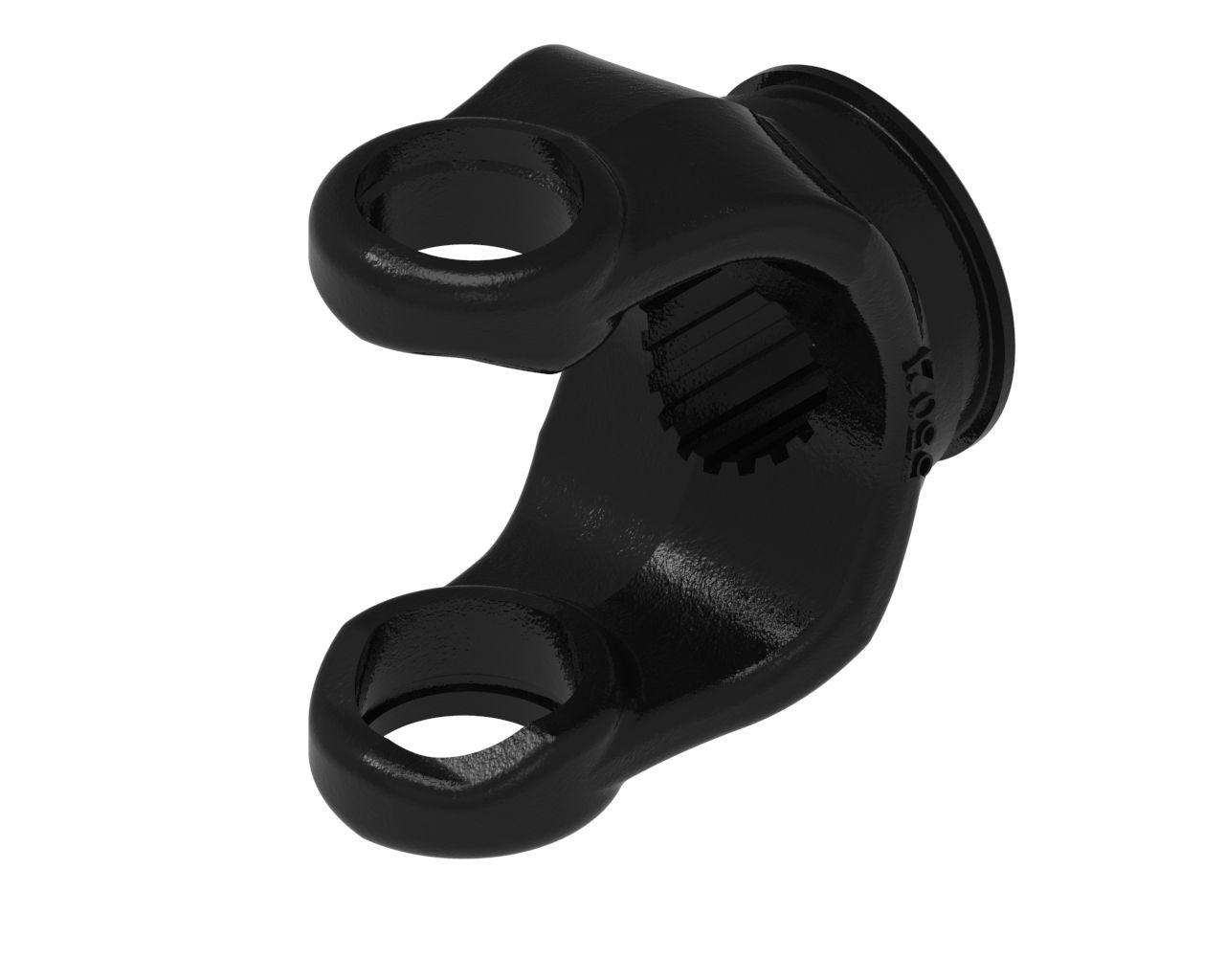

The Weasler 302-5500 PTO Splined Shaft Weld Yoke, 55-Series is a heavy-duty weld-on yoke weldment designed to connect a PTO driveline to a splined shaft for reliable, high-horsepower power transfer in demanding agricultural applications. Built as part of Weasler’s weldment assembly lineup, it supports multiple driveline profile standards and is rated for strong performance in 55-Series systems.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Weasler
• Model / Part #: 302-5500
• Series: 55-Series
• Product Type: PTO splined shaft weld yoke / yoke weldment
• Connection Type: Weld
• Spline / Bore Size: 1 11/16″ – 20 spline
• Bore (Imperial / Metric): 1.75″ / 44 mm
• Rated Power @ 1000 RPM: 211 HP (157 kW)
• Rated Power @ 540 RPM: 137 HP (102 kW)
• Overall Length: 3.75″ (95 mm)
• Height: 5.12″ (130 mm)
• Width: 2.63″ (67 mm)
• Outside Diameter: 2.87″ (73 mm)
• Weight: 4.98 lb (2 kg)
• Shipping Weight: 4.98 lb (2 kg)
• Shipping Dimensions: 4.83″ L × 5.125″ H × 2.63″ W (12 cm L × 13 cm H × 7 cm W)
• Shipping Volume: 65.10 in³ (1067 cm³)

Ideal For

• Welding into 55-Series PTO driveline assemblies needing a splined shaft yoke
• High horsepower PTO applications up to 211 HP @ 1000 RPM (and 137 HP @ 540 RPM)
• Driveline fabrication and repair where a weld-on connection is required
• Agricultural PTO systems needing dependable, heavy-duty power transmission components
