Pto Yoke, 14-Series, 1-3/16" Square Bore

Pto Yoke, 14-Series, 1-3/16" Square Bore w/Set screw

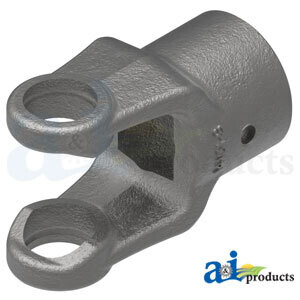

The A-804-1419 PTO Yoke is a Weasler 14-Series implement yoke designed as the final connection point between a PTO drive shaft and the implement or machine. Featuring a 1-3/16" square bore with a set screw connection, it provides a secure, serviceable fit for compatible PTO driveline setups and is rated for up to 58 HP at 1000 RPM (or 38 HP at 540 RPM).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-804-1419
• Brand / Series: Weasler 14-Series
• Product Type: PTO implement yoke
• Bore / Size: 1-3/16" square bore (1.18" / 30 mm)
• Connection Type: Set screw
• Set Screw Size: 3/8-16
• HP Rating @ 1000 RPM: 58 HP (43 kW)
• HP Rating @ 540 RPM: 38 HP (28 kW)
• Overall Length: 3.88" (99 mm)
• Overall Height: 3.38" (86 mm)
• Overall Width: 2.31" (59 mm)
• Weight: 2.48 lb (1 kg)
• Shipping Dimensions: 4.7" L x 3.38" H x 2.31" W (12 cm x 9 cm x 6 cm)
• Shipping Volume: 36.70 in³ (601 cm³)
• Shipping Weight: 2.48 lb (1 kg)

Ideal For

• Replacing or building a PTO driveline using a 14-Series Weasler implement yoke
• Implements requiring a 1-3/16" square bore yoke connection
• Applications needing a secure set screw attachment (3/8-16)
• PTO setups rated up to 58 HP @ 1000 RPM or 38 HP @ 540 RPM
