Pto Yoke, 35 Series 1-1/2" Bore

Pto Yoke, 35 Series 1-1/2" Bore

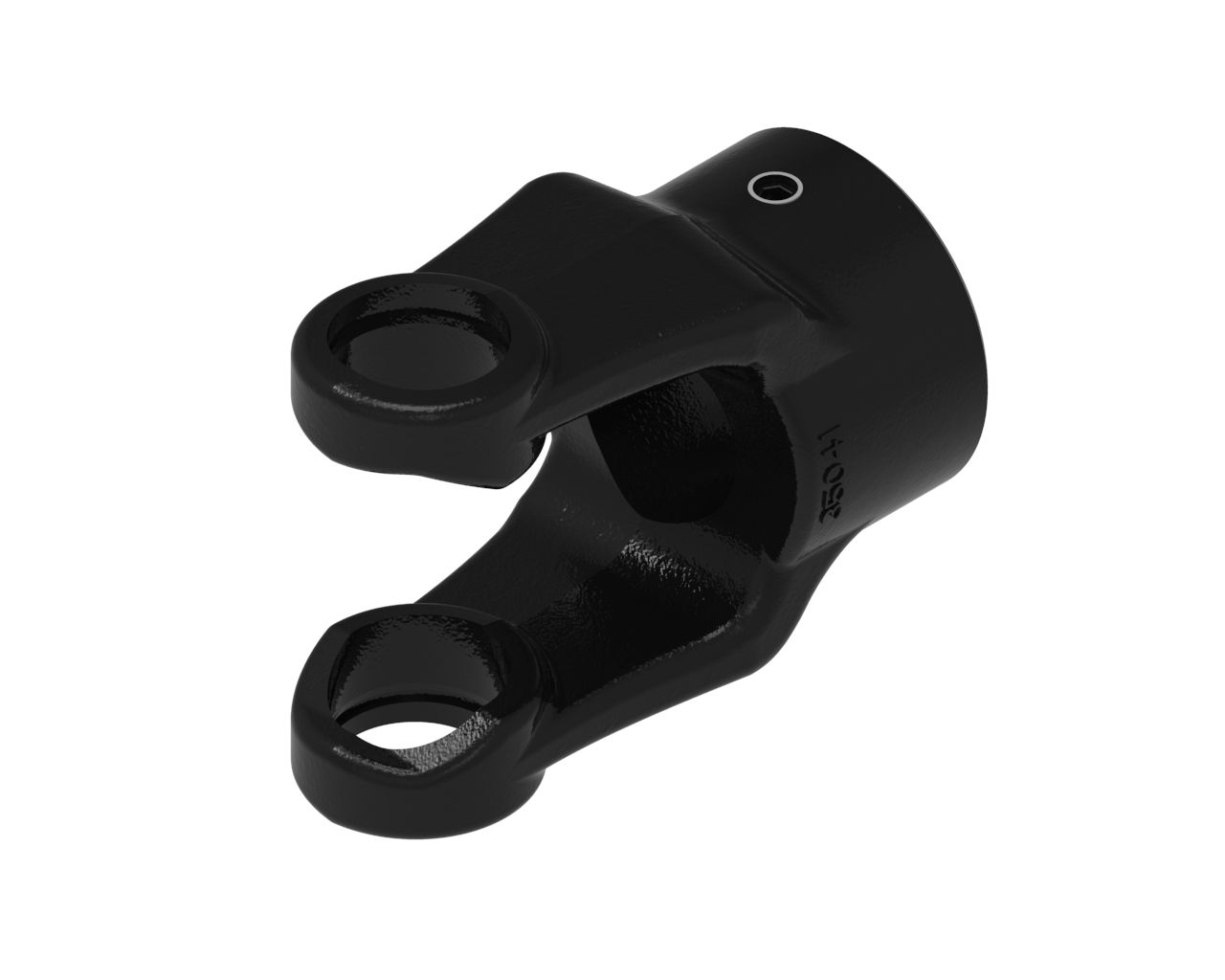

The 800-3524 PTO Yoke (35 Series, 1-1/2" Bore) is an implement yoke used as the final connection point between a PTO drive shaft and the tractor-driven implement. Designed for 35 Series PTO driveline setups, it features a 1.50" round bore with keyway and a setscrew connection, providing a secure fit for reliable power transfer in demanding agricultural applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-3524
• Product Type: PTO implement yoke
• Series: 35 Series
• Bore: 1.50" (38 mm)
• Bore Style: Round with keyway
• Connection Type: Setscrew
• Setscrew Size: 3/8-16
• Keyway: 0.38" (10 mm)
• HP Rating @ 1000 RPM: 108 HP (81 kW)
• HP Rating @ 540 RPM: 70 HP (52 kW)
• Overall Height: 4.00" (102 mm)
• Overall Length: 4.19" (106 mm)
• Overall Width: 2.75" (70 mm)
• Weight: 3.86 lb (2 kg)
• Shipping Dimensions: 5.07" L × 4.00" H × 2.75" W (13 cm L × 10 cm H × 7 cm W)
• Shipping Volume: 55.77 in³ (914 cm³)
• Shipping Weight: 3.86 lb (2 kg)

Ideal For

• Replacing or building a 35 Series PTO driveline connection at the implement end
• Equipment needing a 1-1/2" round bore with keyway PTO yoke
• Setups that secure the yoke using a setscrew connection (3/8-16)
• PTO-driven implements requiring rated power handling up to 70 HP @ 540 RPM or 108 HP @ 1000 RPM
