Pto Yoke, 55N 2-15/64" Torque Tube

Pto Yoke, 55N 2-15/64" Torque Tube

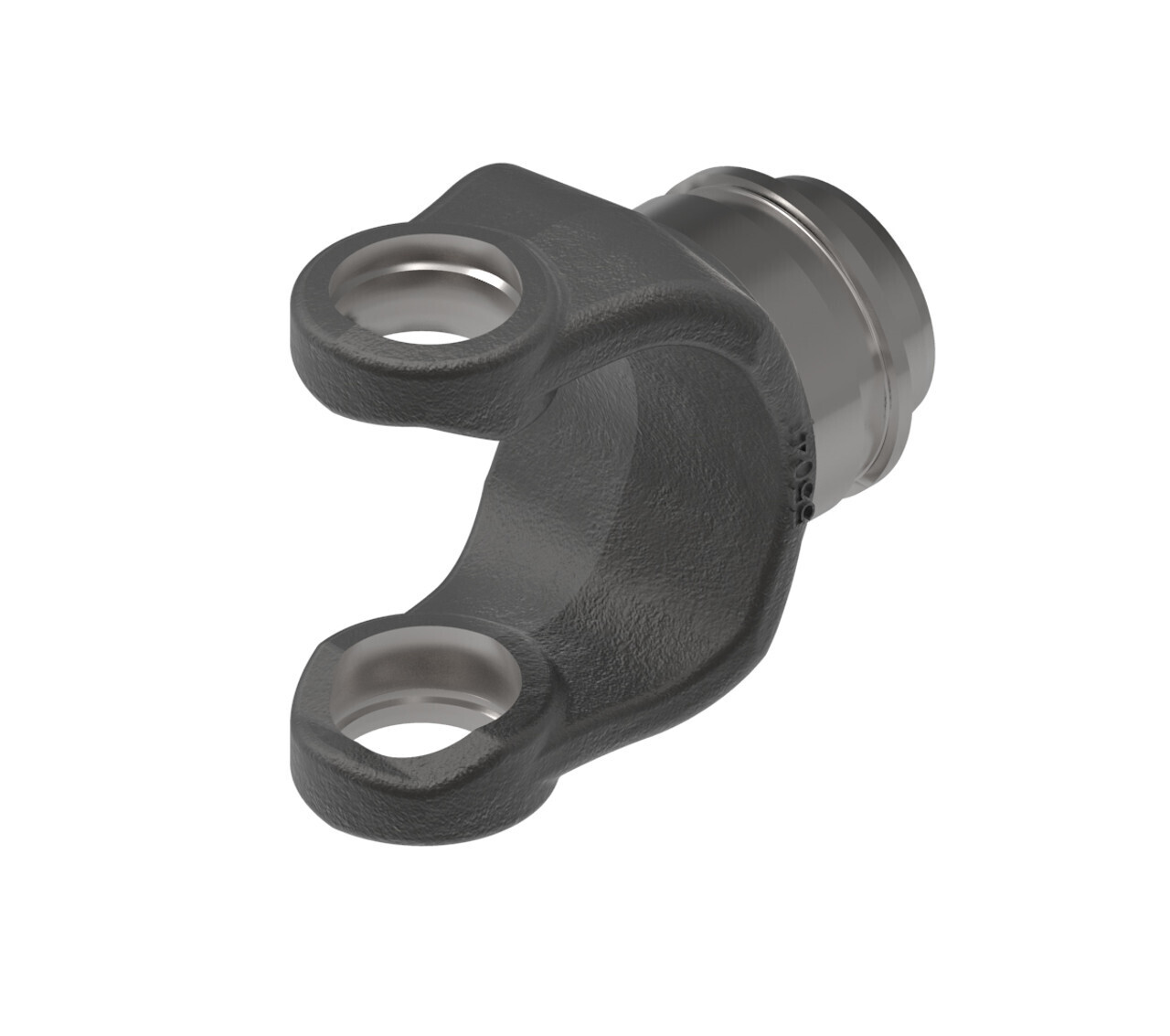

The 701-5500 Weasler PTO Yoke Weldment (55N, 2-15/64" torque tube) is a heavy-duty weld-on yoke designed for PTO driveline fabrication and repair, providing a secure weld connection to compatible shaft/tube profiles. As part of Weasler’s yoke weldment offerings, it supports a range of driveline build standards and is rated for high horsepower transfer at both 540 and 1000 RPM applications.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Weasler
• Part Number: 701-5500
• Product Type: PTO yoke weldment
• Series / Style: 55N
• Tube Profile: 2-15/64" torque tube
• Bore 1: 0.00 in (0 mm) — Solid
• Connection 1: Weld
• Horsepower Rating @ 1000 RPM: 211 HP (157 kW)
• Horsepower Rating @ 540 RPM: 137 HP (102 kW)
• Overall Length: 4.62 in (117 mm)
• Height: 5.13 in (130 mm)
• Outside Diameter: 2.87 in (73 mm)
• Width: 2.63 in (67 mm)
• Item Weight: 4.78 lb (2 kg)
• Shipping Dimensions: 5.71 in L × 5.13 in H × 2.63 in W (15 cm L × 13 cm H × 7 cm W)
• Shipping Volume: 77.04 in³ (1262 cm³)
• Shipping Weight: 4.78 lb (2 kg)

Ideal For

• PTO driveline fabrication requiring a weld-on yoke for a 55N torque tube application
• High-horsepower implements running at 540 RPM or 1000 RPM
• Replacement of worn or damaged yokes on compatible Weasler driveline assemblies
• Shops needing a rugged yoke designed for robust agricultural operating conditions
