Pto Yoke w/Roll Pin Hole, 35-Series, 1-3/8" 6-Spl

Spline Bore Pto Yoke w/Roll Pin Hole, 35-Series, 1-3/8" 6-Spline

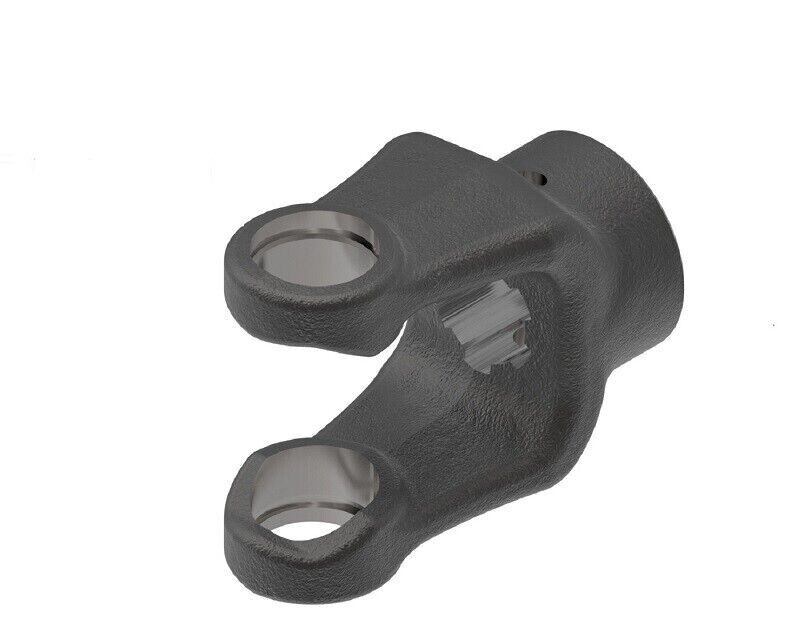

The 801-3506 Spline Bore PTO Yoke w/ Roll Pin Hole is a Weasler 35-Series implement yoke that provides the final connection between a PTO driveline and the implement. Featuring a 1-3/8" 6-spline bore and a roll pin (pin-style) connection, it’s built to deliver dependable power transfer while matching common agricultural PTO interface standards.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 801-3506
• Brand / Series: Weasler — 35-Series
• Product Type: Spline bore PTO implement yoke (with roll pin hole)
• Bore / Spline: 1-3/8" 6-spline (1.37 in / 35 mm)
• Connection Type: Pin
• Pin Hole Size: 0.33 in (8 mm)
• HP Rating @ 540 RPM: 70 HP (52 kW)
• HP Rating @ 1000 RPM: 108 HP (81 kW)
• Overall Length: 4.19 in (106 mm)
• Height: 4.00 in (102 mm)
• Width: 2.34 in (59 mm)
• Weight: 3.30 lb (1 kg)
• Shipping Dimensions: 5.07" L × 4.00" H × 2.34" W (13 cm L × 10 cm H × 6 cm W)
• Shipping Volume: 47.46 in³ (778 cm³)
• Shipping Weight: 3.30 lb (1 kg)

Ideal For

• Replacing a worn or damaged 35-Series implement yoke on PTO drivelines
• Implements requiring a 1-3/8" 6-spline PTO connection with a roll pin style attachment
• Maintaining smooth, reliable power transfer for hay tools, tillage equipment, and general PTO-driven implements
