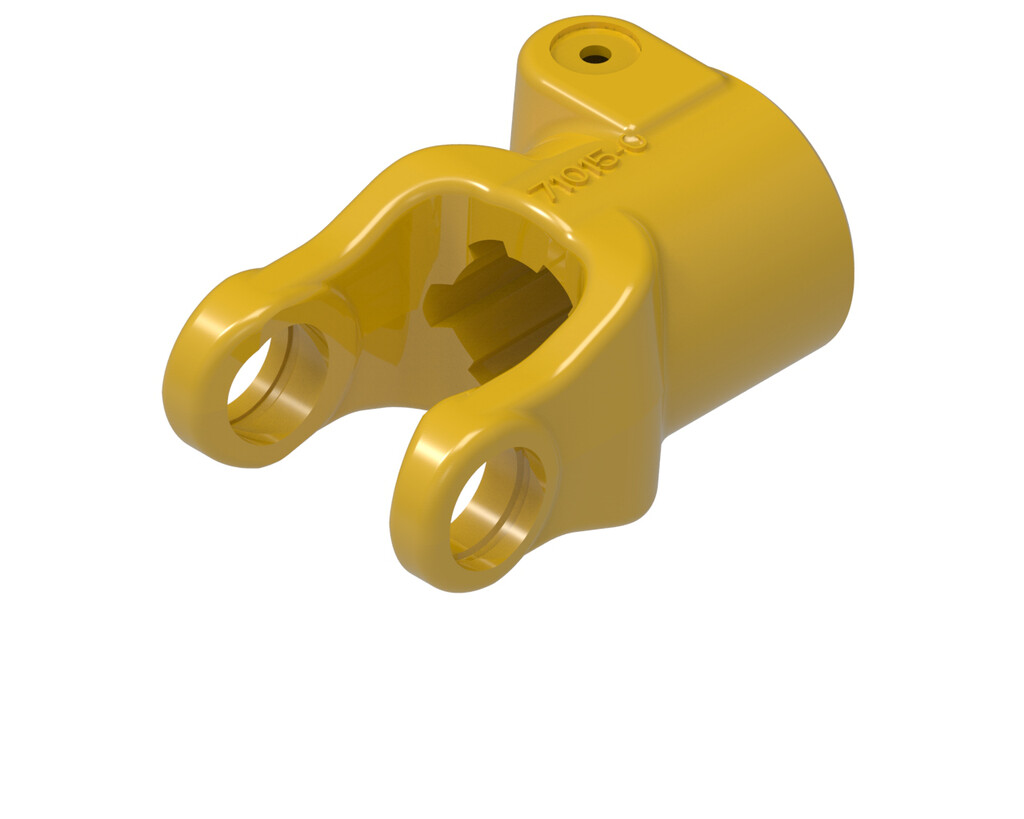

QD Metric Pto Yoke, 1-Series, 1-3/8" 6-Spline

Metric Pto Yoke, #1 1-3/8" 6-Spline

The 102-6106 Metric PTO Yoke is a Weasler tractor yoke designed as the front connection between the tractor PTO and the driveline, using a #1 1-3/8" 6-spline (Type 1) bore for common agricultural PTO hookups. This model features a quick disconnect connection style for faster attachment/removal and is built to meet relevant PTO yoke standards for dependable driveline performance. Rated for 19 HP @ 540 RPM and 29 HP @ 1000 RPM, it’s a solid choice for lighter-duty PTO driveline applications requiring a 1-3/8" 6-spline tractor connection.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 102-6106
• Brand: Weasler
• Product Type: Tractor PTO yoke (metric)
• Spline / Bore: 1.37 in (35 mm) — 1-3/8" 6-spline (Type 1)
• Connection Type: Quick disconnect
• Overall Length: 3.54 in (90 mm)
• Height: 2.80 in (71 mm)
• Width: 2.13 in (54 mm)
• Power Rating @ 540 RPM: 19 HP (14 kW)
• Power Rating @ 1000 RPM: 29 HP (22 kW)
• Weight: 1.56 lb (1 kg)
• Shipping Dimensions: 4.19" L × 2.80" H × 2.13" W (11 cm L × 7 cm H × 5 cm W)
• Shipping Volume: 24.99 in³ (410 cm³)
• Shipping Weight: 1.56 lb (1 kg)

Ideal For

• Connecting a PTO driveline to tractors with 1-3/8" 6-spline (Type 1) PTO shafts
• Applications where a quick disconnect PTO yoke improves hookup speed and convenience
• Replacing worn tractor yokes on compatible Weasler PTO drivelines
• Light-to-medium PTO use up to 19 HP @ 540 RPM or 29 HP @ 1000 RPM
• Service shops stocking common Type 1 PTO connection components
