QD Metric Pto Yoke, B&P 2-Series & Walterscheid 2200 1-3/8" 21-Spline

Metric QD Pto Yoke, B&P 2-Series & Walterscheid 2200 1-3/8" 21-Spline

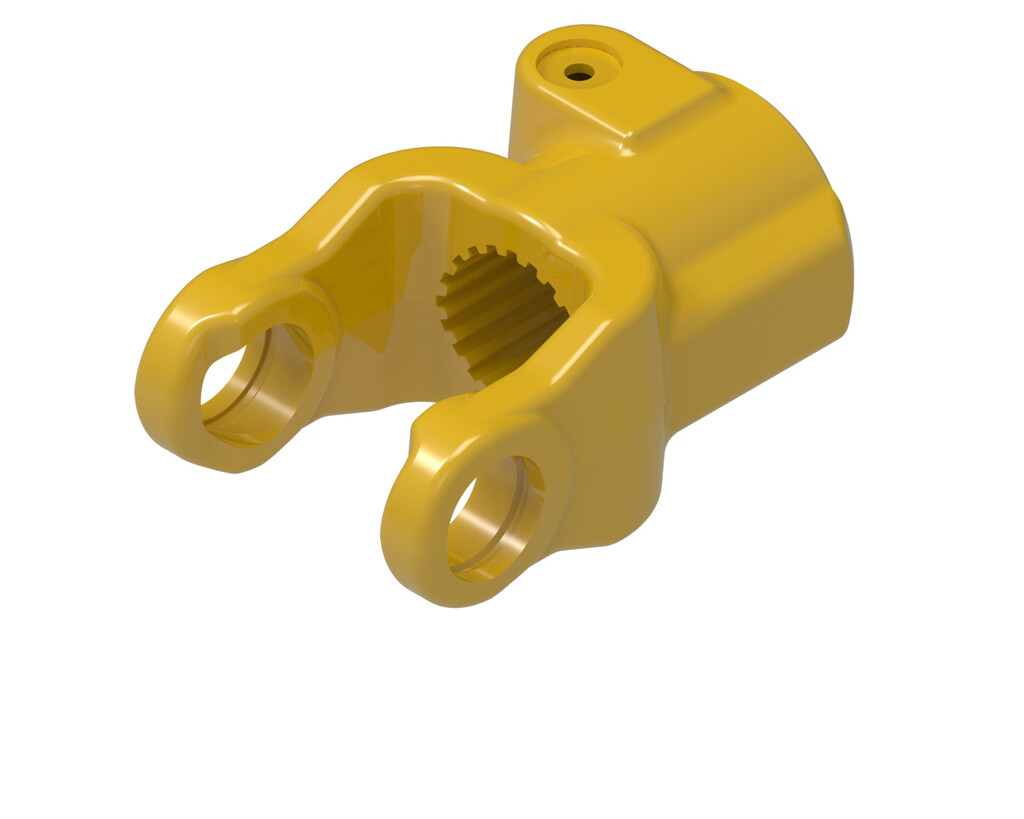

The 102-8221 Metric QD PTO Yoke (B&P 2-Series & Walterscheid 2200, 1-3/8" 21-Spline) is a tractor-end driveline yoke that serves as the leading connection between the tractor PTO and the driveline. Featuring a quick disconnect (QD) connection for fast implement changes, it uses a 1-3/8" 21-spline (Type 2) bore and is sized for compatibility with B&P 2-Series and Walterscheid 2200 style PTO drivelines.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 102-8221
• Product Type: Tractor PTO yoke
• Series Compatibility: B&P 2-Series and Walterscheid 2200
• Bore Size: 1.37 in (35 mm)
• Bore Style: 1-3/8" 21-spline (Type 2)
• Connection Type: Quick disconnect (QD)
• HP Rating @ 1000 RPM: 38 HP (28 kW)
• HP Rating @ 540 RPM: 25 HP (19 kW)
• Overall Length: 3.85 in (98 mm)
• Height: 3.35 in (85 mm)
• Width: 2.00 in (51 mm)
• Weight: 1.94 lb (1 kg)
• Shipping Dimensions: 4.57" L × 3.35" H × 2.00" W (12 cm L × 9 cm H × 5 cm W)
• Shipping Volume: 30.62 in³ (502 cm³)
• Shipping Weight: 1.94 lb (1 kg)

Ideal For

• Tractor PTO hookups needing a 1-3/8" 21-spline (Type 2) connection
• Operators who want quick disconnect convenience for faster implement changes
• PTO applications operating at 540 RPM or 1000 RPM within the listed HP ratings
• Replacing a worn or damaged tractor-end yoke on compatible B&P 2-Series / Walterscheid 2200 drivelines
