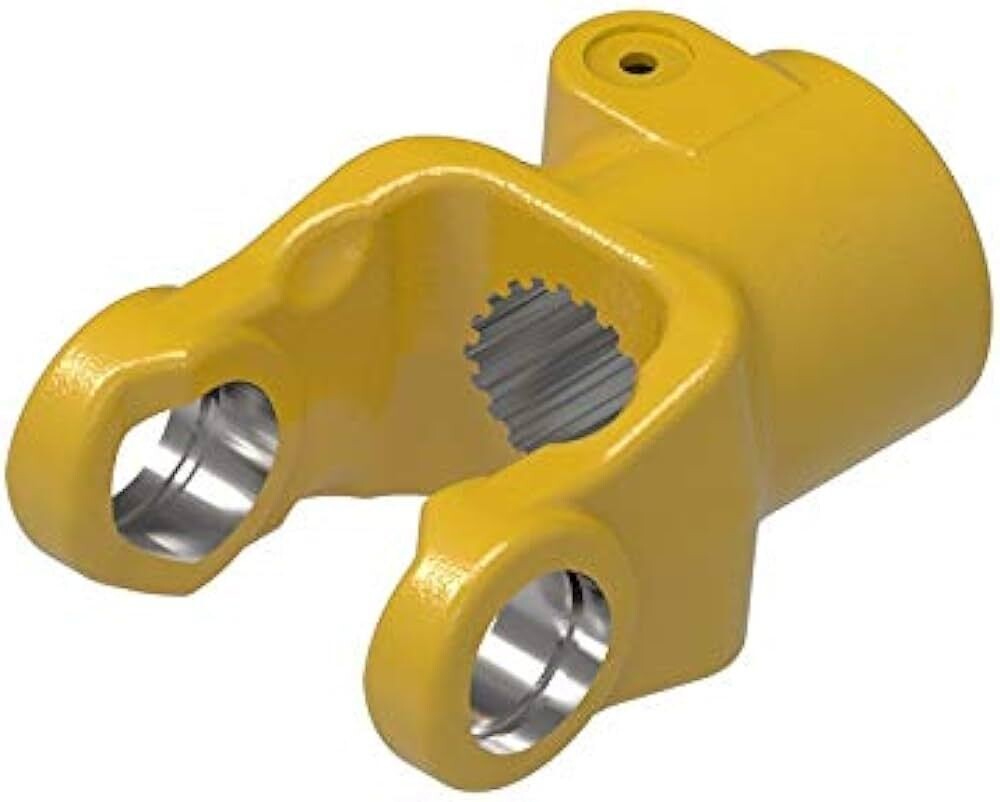

QD Metric Pto Yoke, B&P 3-Series & Walterscheid I-Series 1-3/8" 21-Spline

Metric QD Pto Yoke, B&P 3-Series & Walterscheid I-Series 1-3/8" 21-Spline

The 102-8321 Metric QD PTO Yoke is a tractor-end driveline yoke designed as the front connection between the tractor PTO and the PTO shaft. Built for B&P 3-Series and Walterscheid I-Series applications, it features a 1-3/8" 21-spline (Type 2) bore with a Spring-Lok connection for secure attachment and dependable power transfer. This style of tractor yoke is also listed as compliant with common agricultural driveline standards including ANSI/ASABE AD5673, AD5674, S604, and EN12965.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 102-8321
• Product Type: Tractor PTO yoke
• Series Compatibility: B&P 3-Series and Walterscheid I-Series
• Connection Type: Spring-Lok
• Bore / PTO Size: 1-3/8" 21-spline (35 mm; Type 2)
• Rated Power @ 540 RPM: 38 HP (28 kW)
• Rated Power @ 1000 RPM: 58 HP (43 kW)
• Overall Length: 4.72 in (120 mm)
• Height: 3.48 in (88 mm)
• Width: 2.17 in (55 mm)
• Weight: 3.35 lb (2 kg)
• Shipping Dimensions: 5.53" L x 3.48" H x 2.17" W (14 cm x 9 cm x 6 cm)
• Shipping Volume: 41.76 in³ (684 cm³)
• Standards Compliance: ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604, EN12965

Ideal For

• Replacing a tractor yoke on B&P 3-Series or Walterscheid I-Series PTO drivelines
• Tractors using a 1-3/8" 21-spline (Type 2) PTO stub
• Operators who prefer a Spring-Lok locking connection for secure engagement
• PTO applications operating within 38 HP @ 540 RPM or 58 HP @ 1000 RPM ratings
• Mixed-fleet driveline maintenance requiring components aligned with common ANSI/ASABE and EN standards
