QD Metric Pto Yoke, B&P 6-Series & Walterscheid 220/720-Series 1-3/8" 6-Spline

Metric QD Pto Yoke, B&P 6-Series & Walterscheid 220/720-Series 1-3/8" 6-Spl

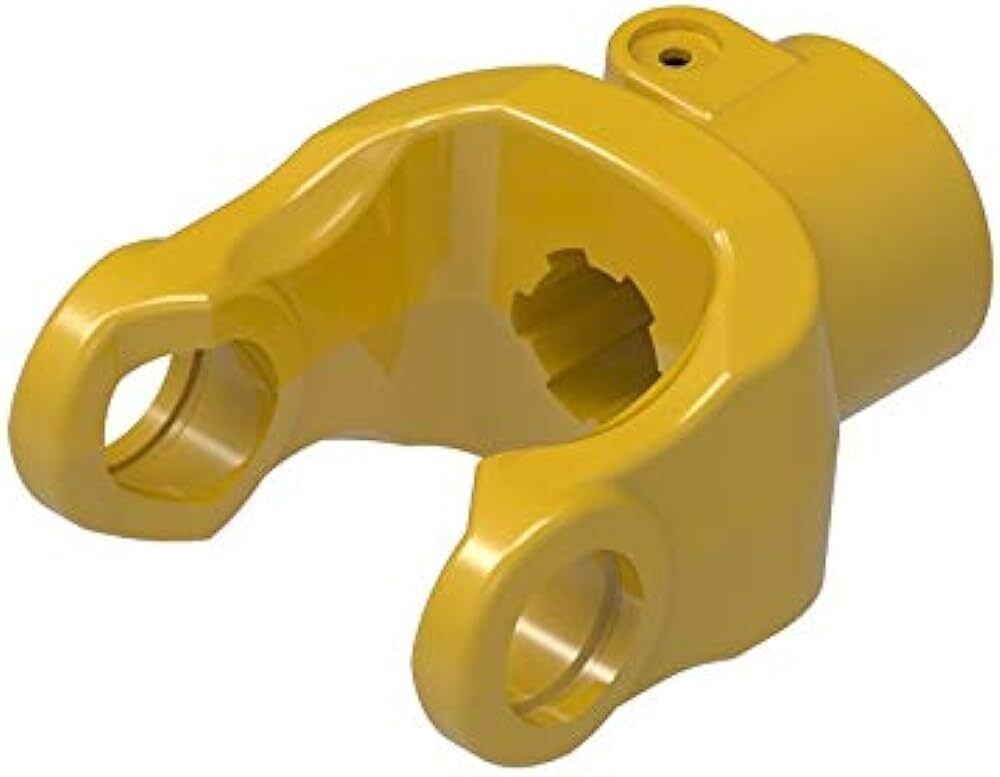

The 102-8606 Metric QD PTO Yoke is a quick-disconnect tractor yoke designed as the primary tractor-side connection between the tractor PTO and the driveline. Built for compatibility with Bondioli & Pavesi (B&P) 6-Series and Walterscheid 220/720-Series drivelines, it features a 1-3/8" 6-spline (Type 1) bore for common agricultural PTO setups. Rated for demanding use, it delivers up to 79 HP @ 540 RPM and 122 HP @ 1000 RPM, and is compliant with key PTO driveline standards (per provided info).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 102-8606
• Product Type: Tractor PTO yoke (Metric QD / Quick Disconnect)
• Compatibility: B&P 6-Series and Walterscheid 220/720-Series
• Bore / Spline: 1-3/8" 6-spline (Type 1) (1.37" / 35 mm)
• Connection Type: Quick Disconnect (QD)
• HP Rating: 79 HP @ 540 RPM; 122 HP @ 1000 RPM
• Overall Length: 4.64" (118 mm)
• Height: 4.49" (114 mm)
• Width: 2.76" (70 mm)
• Weight: 4.04 lb (2 kg)
• Compliance: Meets ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604, and EN12965 (per provided info)
• Shipping Dimensions: 5.57" L × 4.49" H × 2.76" W
• Shipping Weight: 4.04 lb

Ideal For

• Replacing a tractor-side QD PTO yoke on compatible B&P 6-Series or Walterscheid 220/720-Series drivelines
• Tractor PTO connections requiring 1-3/8" 6-spline (Type 1) fitment
• Operators who want quick disconnect convenience for faster implement hookup
• PTO applications running up to 79 HP @ 540 RPM or 122 HP @ 1000 RPM
• Drivelines needing compliance with common ANSI/ASABE and EN PTO standards
