QD Metric Pto Yoke, B&P 8-Series 1-3/8 6-Spline

QD Metric Pto Yoke, B&P 8-Series 1-3/8 6-Spline

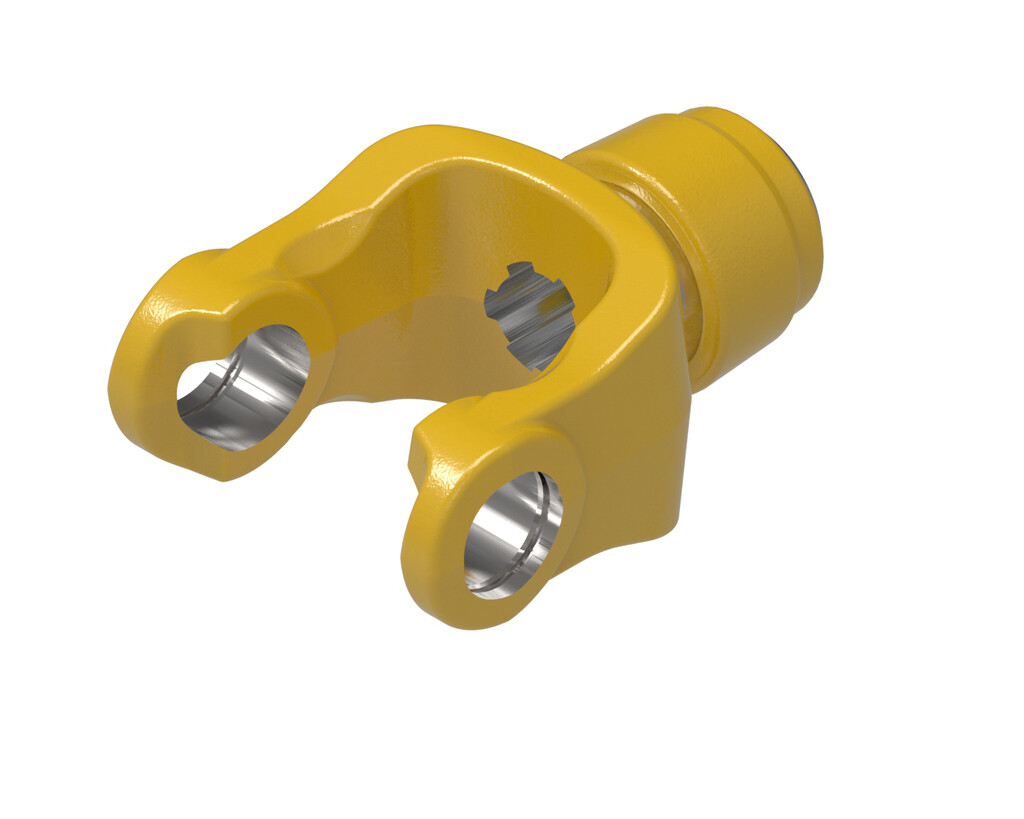

The 101-6806 QD Metric PTO Yoke (B&P 8-Series, 1-3/8" 6-spline) is a tractor-end yoke designed to be the leading connection between the tractor PTO and the driveline. Built for 1-3/8" 6-spline (Type 1) tractor PTOs, it uses a safety slide lock style connection and is rated for higher-horsepower PTO applications, making it a strong fit for agricultural drivelines where secure coupling and consistent performance are required.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / Part Number: 101-6806
• Series: B&P 8-Series
• Product Type: Tractor PTO yoke
• Bore / Spline: 1-3/8" – 6 spline (Bore 1: 1.37 in / 35 mm)
• Connection Type: Safety slide lock
• Standards Compliance: Compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604, and EN12965
• Power Rating:
  • 185 HP @ 1000 RPM (138 kW)
  • 120 HP @ 540 RPM (89 kW)

Dimensions / Measurements

• Length: 5.70 in (145 mm)
• Height: 5.12 in (130 mm)
• Width: 3.15 in (80 mm)
• Weight: 6.50 lb (3 kg)
• Shipping Dimensions: 6.79" L × 5.12" H × 3.15" W (17 cm × 13 cm × 8 cm)
• Shipping Volume: 109.51 in³ (1795 cm³)
• Shipping Weight: 6.50 lb (3 kg)

Ideal For

• Replacing the tractor-end yoke on B&P 8-Series PTO drivelines
• Tractors with 1-3/8" 6-spline (Type 1) PTO outputs
• Higher-power PTO applications operating within the listed HP ratings
• Operators wanting a secure connection using a safety slide lock coupling style
