QD Metric Pto Yoke, Walterscheid 2400-Series 1-3/8" 21-Spline
SKU 1027621
$77.99
In stock: 2 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

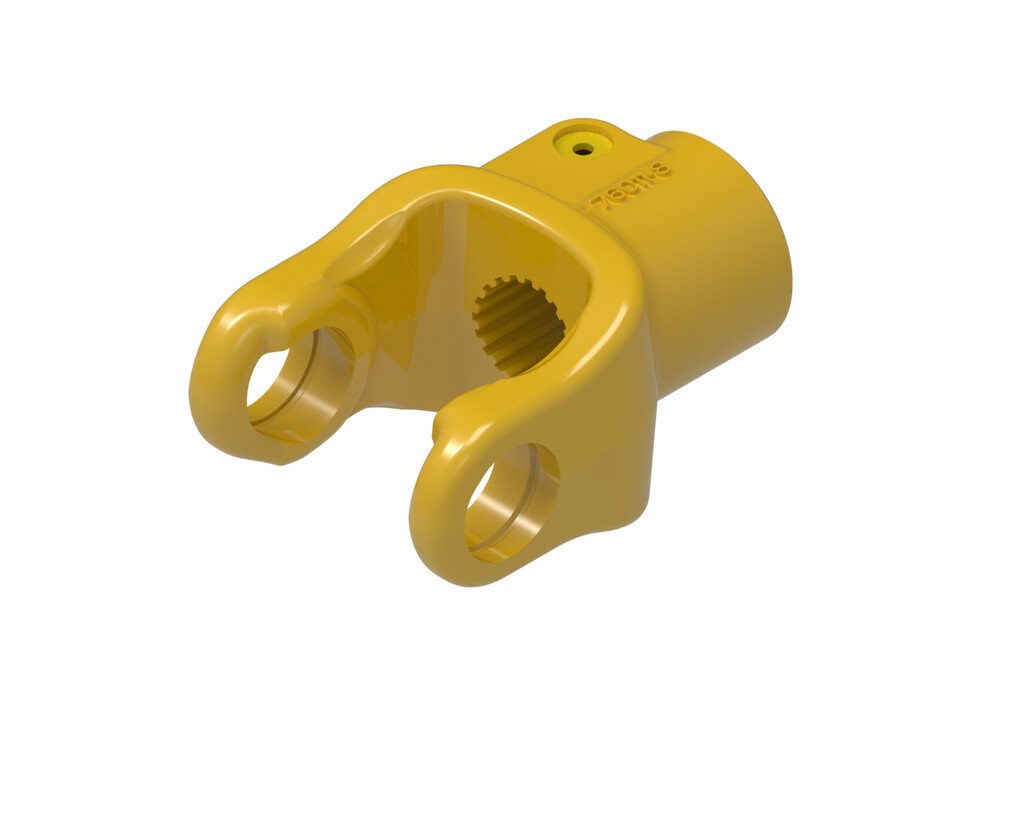

QD Metric Pto Yoke, Walterscheid 2400-Series 1-3/8" 21-Spline
Product Details
UPC: 728357300085
Brand: Weasler
Weight: 3.95 lbs
Metric QD Pto Yoke, Walterscheid 2400-Series 1-3/8" 21-Spl
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-21 SPLINE | |
| Connection 1 | QUICK DISCONNECT | |
| Height | 4.72 inches | 120 mm |
| HP@1000RPM | 145 HP | 108 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Length | 4.68 inches | 119 mm |
| Shipping Dimensions | 5.77" L × 4.72" H × 2.95" W | 15cm L × 12cm H × 7cm W |
| Shipping Volume | 80.34 in3 | 1317 cm3 |
| Shipping Weight | 3.92 pounds | 2 kilograms |
| Weight | 3.92 pounds | 2 kilograms |
| Width | 2.95 inches | 75 mm |
