QD Pto Yoke, 0675/1000-Series 1-3/8" 6-Spline

QD Pto Yoke, 0675/1000-Series 1-3/8" 6-Spline

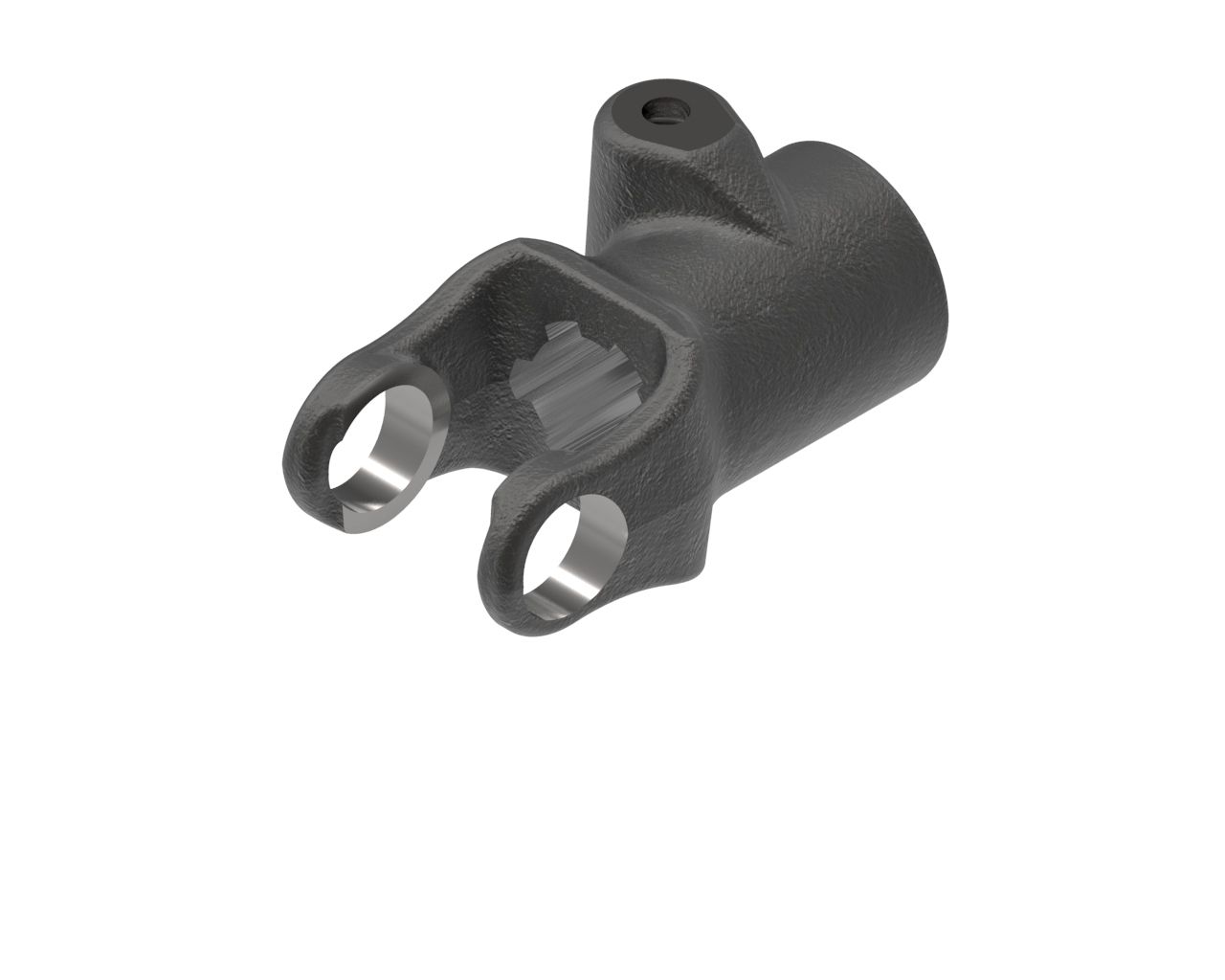

The A-D101206 QD PTO Yoke (0675/1000-Series, 1-3/8" 6-Spline) is a tractor-end driveline yoke designed as the leading connection between the tractor PTO and the driveline. Built with a quick disconnect (QD) coupling for fast hookup and removal, it uses a 1-3/8" 6-spline (Type 1) bore and is designed to meet common driveline standards used in agricultural PTO applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-D101206
• Product Type: Tractor PTO yoke
• Series: 0675/1000-Series
• Bore Size: 1.37 in (35 mm)
• Bore Style: 1-3/8" 6-spline (Type 1)
• Connection Type: Quick disconnect (QD)
• HP Rating @ 1000 RPM: 22 HP (16 kW)
• HP Rating @ 540 RPM: 15 HP (11 kW)
• Overall Length: 3.88 in (99 mm)
• Height: 2.50 in (64 mm)
• Width: 2.00 in (51 mm)
• Weight: 2.00 lb (1 kg)
• Shipping Dimensions: 4.55" L × 2.50" H × 2.00" W (12 cm L × 6 cm H × 5 cm W)
• Shipping Volume: 22.75 in³ (373 cm³)
• Shipping Weight: 2.00 lb (1 kg)

Ideal For

• Tractor PTO hookups needing a 1-3/8" 6-spline (Type 1) connection
• Operators who want quick disconnect convenience for faster implement changes
• Light-to-medium PTO applications operating at 540 RPM or 1000 RPM within the listed HP ratings
• Replacing a worn or damaged tractor-end PTO yoke on compatible 0675/1000-series drivelines
