QD Pto Yoke, 14-Series 1-3/8" 6-Spline

Pto Yoke, 14-Series 1-3/8" 6-Spline

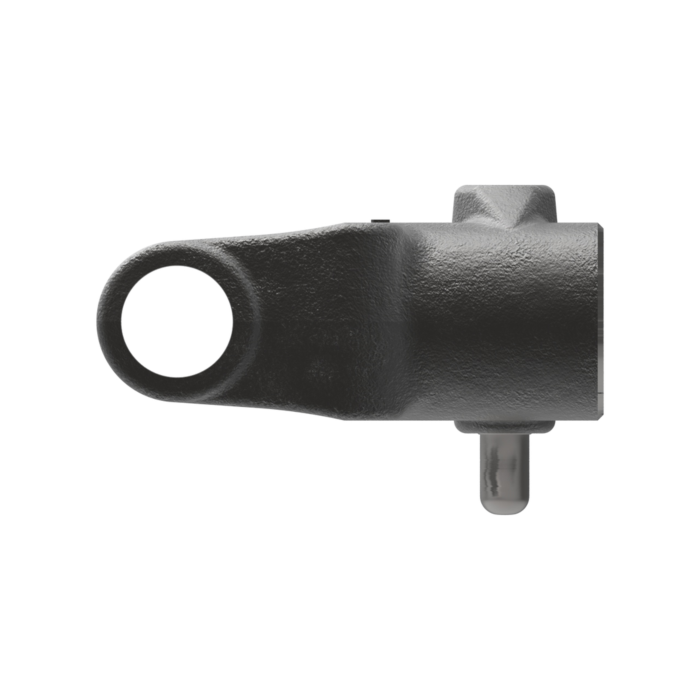

The 102-1406 PTO Yoke is a Weasler 14-Series tractor yoke that serves as the leading connection between the tractor PTO and the driveline. Built with a quick disconnect connection and a 1-3/8" 6-spline (Type 1) bore, it’s designed for dependable hookup and power transfer, with rated horsepower capacities for both 540 RPM and 1000 RPM operation.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 102-1406
• Brand: Weasler
• Product Type: Tractor PTO yoke
• Series: 14-Series
• Bore: 1-3/8 in 6-spline (1.37 in / 35 mm)
• Connection Type: Quick disconnect
• Dimensions: 4.31 in (L) x 3.31 in (W) x 4.01 in (H) — 109 x 84 x 102 mm
• Weight: 2.62 lb (1 kg)
• Rated Power: 58 HP @ 1000 RPM (43 kW); 38 HP @ 540 RPM (28 kW)
• Standards Compliance: Compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604, and EN12965
• Shipping Dimensions: 5.13" L x 3.31" W x 4.01" H — 13 cm L x 8 cm W x 10 cm H
• Shipping Volume: 68.09 in³ (1116 cm³)
• Shipping Weight: 2.62 lb (1 kg)

Ideal For

• Replacing a tractor-end yoke on a Weasler 14-Series PTO driveline
• Tractor hookups requiring 1-3/8" 6-spline (Type 1) connection
• Operators who want faster attach/detach with a quick disconnect style yoke
• PTO systems running at 540 or 1000 RPM within the listed horsepower ratings
• Setups needing compliance with common driveline safety standards (ANSI/ASABE / EN12965)
