QD Pto Yoke, 2600-Series 1-3/8 21-Spline

QD Pto Yoke, 2600-Series 1-3/8 21-Spl.

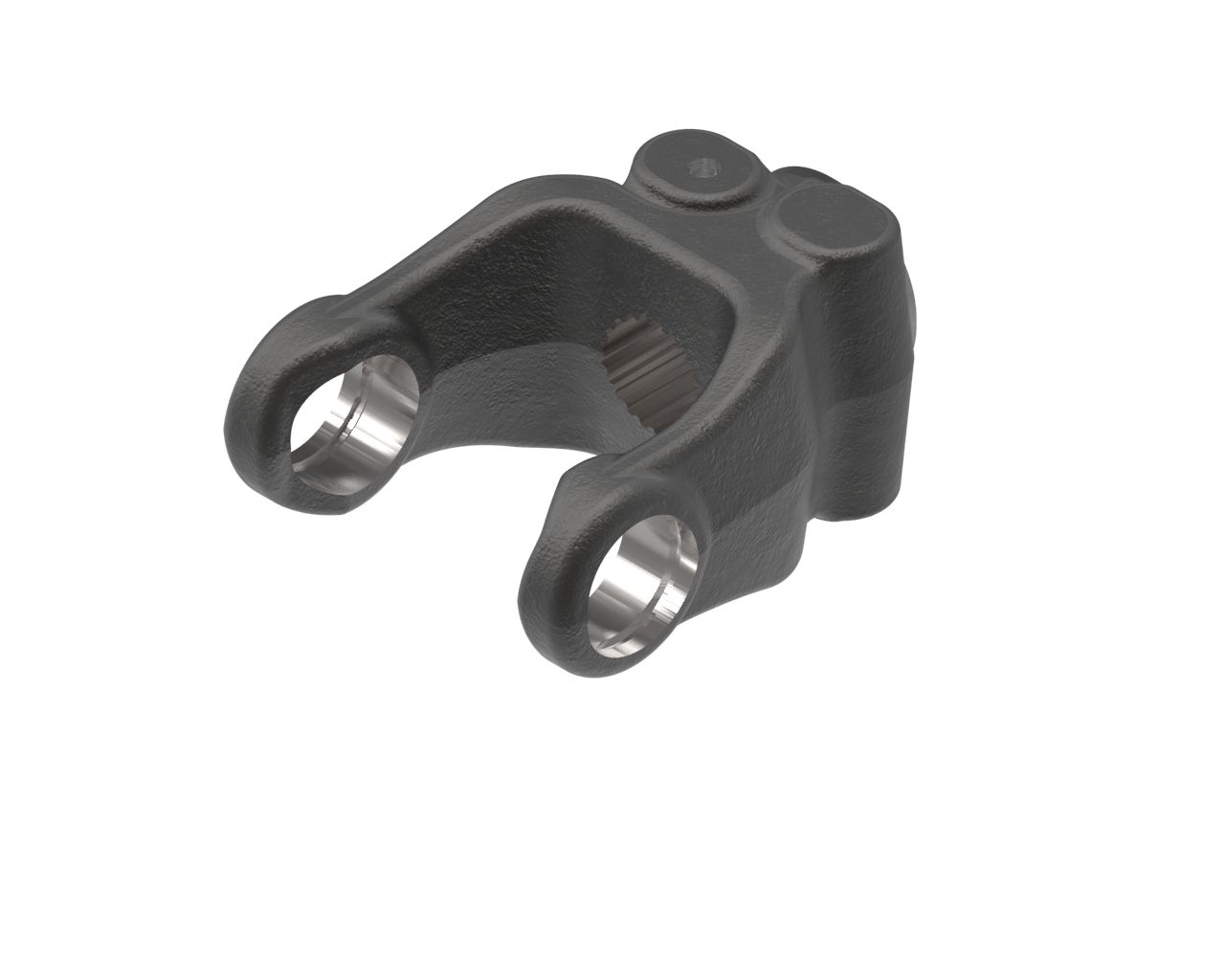

The 102-2621 QD PTO Yoke (2600-Series) is a tractor-end driveline yoke designed to provide a secure, quick-disconnect connection between the tractor PTO and the driveline. It features a 1-3/8" 21-spline (Type 2) bore and is built for higher-horsepower PTO applications, offering strong ratings at both 540 and 1000 RPM while keeping hookup and removal fast with the QD (quick disconnect) connection style.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 102-2621
• Series / Fitment: 2600-Series
• Product Type: Tractor PTO yoke (tractor-end driveline connection)
• Connection Type: Quick Disconnect (QD)
• Spline / Bore: 1-3/8" 21 SPLINE (1.37" / 35 mm)
• Power Rating @ 540 RPM: 100 HP (75 kW)
• Power Rating @ 1000 RPM: 154 HP (115 kW)
• Overall Length: 5.31" (135 mm)
• Height: 5.12" (130 mm)
• Width: 2.63" (67 mm)
• Weight: 6.48 lb (3 kg)
• Shipping Dimensions: 6.39" L × 5.125" H × 2.63" W (16 cm L × 13 cm H × 7 cm W)
• Shipping Volume: 86.13 in³ (1411 cm³)
• Shipping Weight: 6.48 lb (3 kg)

Ideal For

• Tractor PTO setups requiring 1-3/8" 21-spline (Type 2) connection
• Faster driveline hookup/removal using a quick disconnect tractor yoke
• Implements needing solid power handling up to 100 HP @ 540 RPM or 154 HP @ 1000 RPM
• Replacing a worn or damaged 2600-Series QD tractor yoke
• Users who want secure PTO engagement with convenient QD operation
