QD Pto Yoke, 2600-Series 1-3/8" 6-Spline

QD Pto Yoke, 2600-Series 1-3/8" 6-Spline

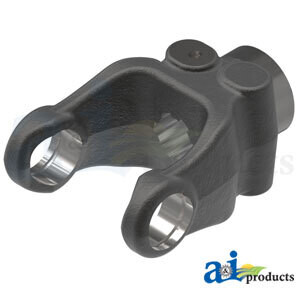

The A-D261206 QD PTO Yoke, 2600-Series (1-3/8" 6-Spline) is a quick disconnect tractor yoke that serves as the primary connection point between the tractor PTO and the driveline. Built to meet common driveline standards and sized for Type 1 (1-3/8" 6-spline) tractor PTOs, it’s designed for solid engagement and convenient hookup/removal in demanding agricultural PTO applications.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / SKU: A-D261206
• Product Type: QD tractor PTO yoke (quick disconnect)
• Series: 2600 Series
• Bore / PTO Spline: 1-3/8" 6-spline (Type 1) — 1.37 in / 35 mm
• Connection Type: Quick Disconnect
• HP Rating: 100 HP @ 540 RPM; 154 HP @ 1,000 RPM
• Overall Length: 5.31 in (135 mm)
• Height: 5.12 in (130 mm)
• Width: 2.63 in (67 mm)
• Weight: 7.14 lb (3 kg)
• Shipping Dimensions: 6.39" L × 5.125" H × 2.63" W (16 cm × 13 cm × 7 cm)
• Shipping Volume: 86.13 in³ (1411 cm³)
• Compliance / Standards: ANSI/ASABE AD5673, AD5674, S604, and EN12965 compliant

Ideal For

• Connecting a PTO driveline to a 1-3/8" 6-spline (Type 1) tractor PTO
• Applications that benefit from a quick disconnect hookup style
• 2600-series PTO drivelines needing a tractor-side yoke rated up to 100 HP @ 540 and 154 HP @ 1,000
• Replacing worn or damaged tractor yokes to restore safe, secure PTO engagement
