QD Pto Yoke, 44-Series 1-3/4" 20-Spline

QD Pto Yoke, 44-Series 1-3/4" 20-Spline

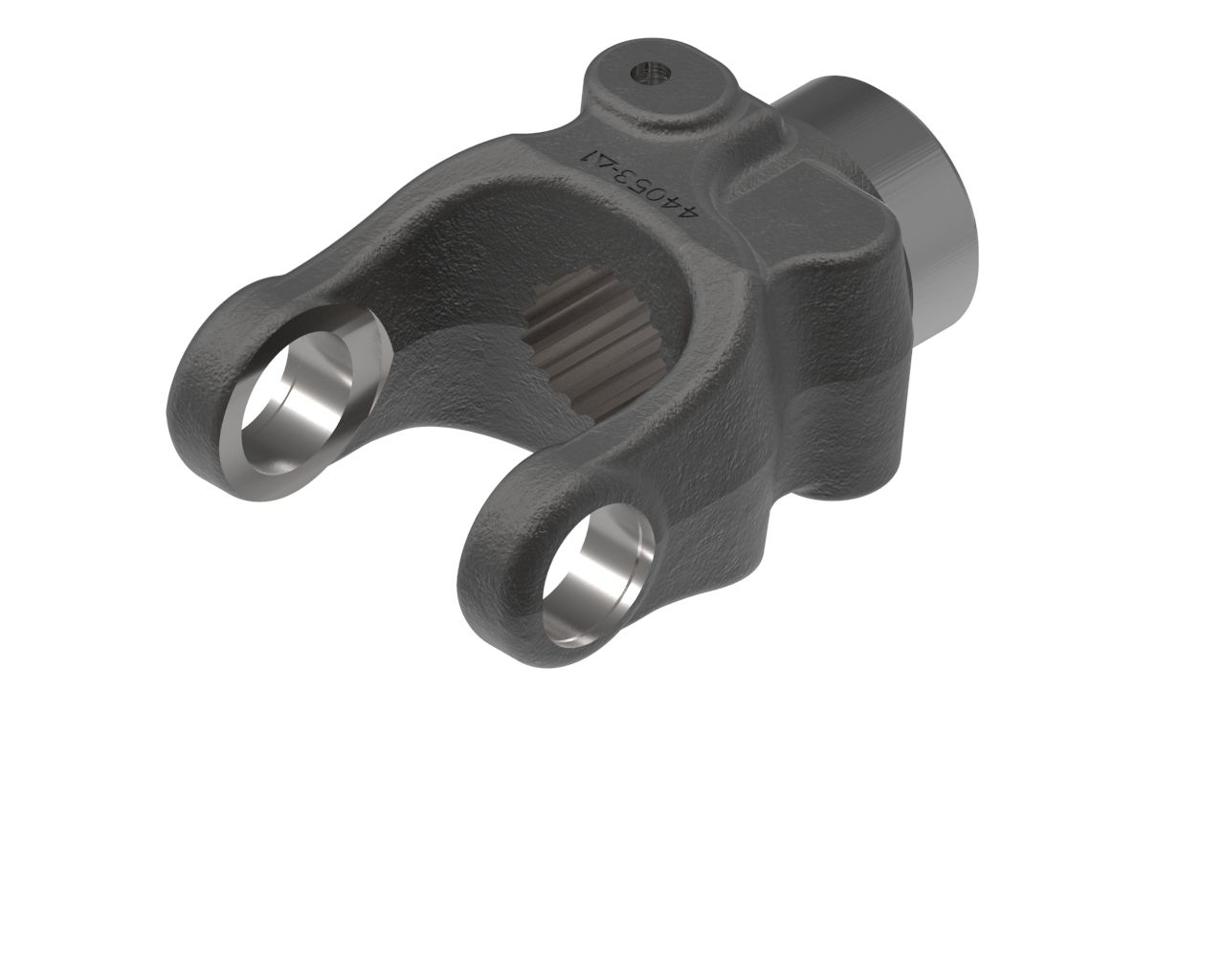

The Weasler 102-4420 Quick Disconnect (QD) PTO Yoke, 44-Series, 1-3/4" 20-Spline is the tractor-side driveline connection built for secure hookup and dependable power transfer in demanding agricultural PTO applications. Designed as a 44-Series yoke with a quick disconnect locking style, it fits Type 3 (1-3/4" 20-spline) tractor PTOs and is engineered to meet common driveline safety and performance standards for long service life.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Weasler
• Model / Part #: 102-4420
• Series: 44-Series
• Product Type: Tractor PTO yoke
• Connection Type: Quick Disconnect (QD)
• PTO Spline / Bore: 1-3/4" 20-spline (Type 3)
• Bore (Imperial / Metric): 1.75" / 44 mm
• Rated Power @ 1000 RPM: 158 HP (118 kW)
• Rated Power @ 540 RPM: 103 HP (77 kW)
• Overall Length: 5.56" (141 mm)
• Height: 4.50" (114 mm)
• Width: 4.44" (113 mm)
• Weight: 6.36 lb (3 kg)
• Shipping Weight: 6.36 lb (3 kg)
• Shipping Dimensions: 6.5" L × 4.5" H × 4.44" W (17 cm L × 11 cm H × 11 cm W)
• Shipping Volume: 129.87 in³ (2128 cm³)
• Standards Compliance: Compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604, and EN12965

Ideal For

• Replacing a tractor-side PTO yoke on 44-Series PTO drive shafts
• Tractors with a 1-3/4" 20-spline (Type 3) PTO output
• Operators wanting fast hookup and removal using a Quick Disconnect locking style
• PTO drivelines where high power capacity is required (up to 158 HP @ 1000 RPM)
• Farm equipment drivelines needing components aligned with common ANSI/ASABE / EN driveline standards
