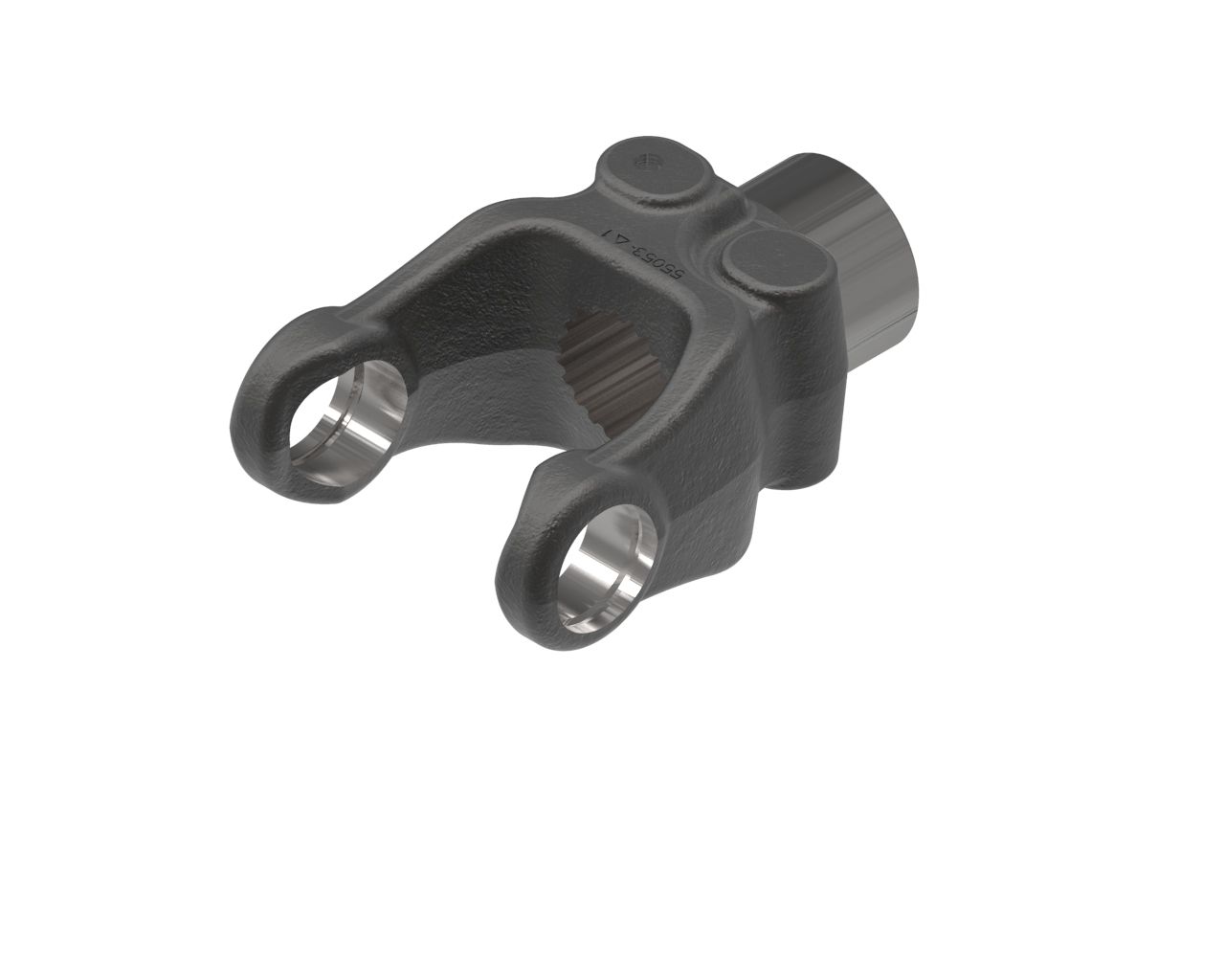

The Weasler QD PTO Yoke (55-Series, 1-3/4" 20-spline) is the tractor-end driveline connection designed to quickly and securely attach a PTO driveshaft to tractors using a Type 3 (1-3/4" 20-spline) PTO stub. Built for demanding agricultural applications, it uses a quick disconnect locking style and is designed to meet relevant PTO driveline safety and compatibility standards for reliable, heavy-duty power transmission.
Country of Origin: Varies by production batch
Key Features / Specifications
- Product: QD PTO Yoke (tractor yoke)
- Series: 55-Series
- Bore: 1.75" (44 mm)
- Spline: 1-3/4" 20 SPLINE (Type 3)
- Connection type: QUICK DISCONNECT
- Horsepower rating @ 540 RPM: 137 HP (102 kW)
- Horsepower rating @ 1000 RPM: 211 HP (157 kW)
- Overall length: 6.13" (156 mm)
- Height: 5.13" (130 mm)
- Width: 2.63" (67 mm)
- Weight: 7.76 lb (4 kg)
- Shipping dimensions: 7.21" L × 5.13" H × 2.63" W (18 cm L × 13 cm H × 7 cm W)
- Shipping volume: 97.28 in³ (1594 cm³)
- Compliance (as stated): ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604, EN12965
- Fitment context (as stated): Agricultural tractor yokes are offered in multiple spline types; this model is the 1-3/4" 20-spline option for the specific tractor PTO connection needed
Ideal For:
- Tractors with a 1-3/4" 20-spline (Type 3) PTO stub requiring a quick disconnect yoke connection
- High-horsepower PTO applications needing a robust tractor-end driveline yoke
- Replacing or upgrading the tractor yoke on compatible PTO driveline assemblies where quick attach/detach is preferred
