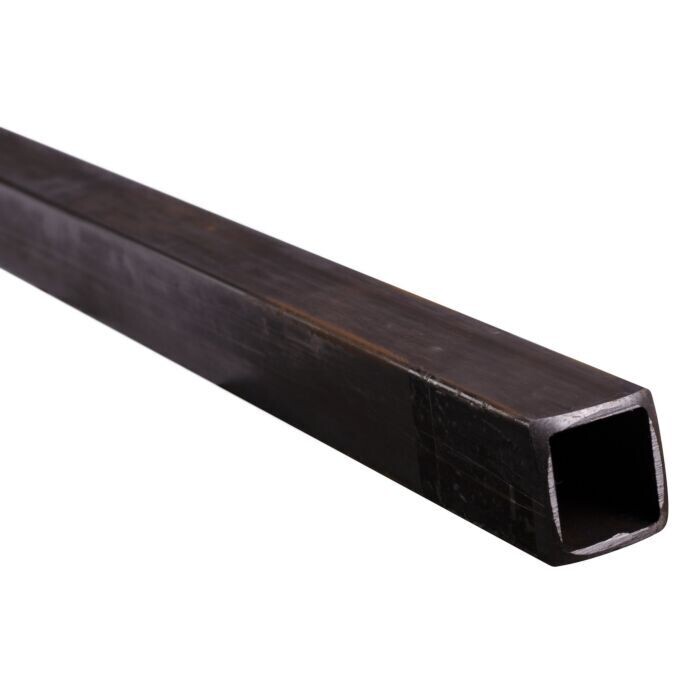

Rectangular Pto Tube, 1"X1-1/8" ID

Rectangular Pto Tube, 12 & 14 Series, 1"X1-1/8" ID

The 600-2022 Rectangular PTO Tube is a reinforcement tube for PTO drive shafts, serving as a protective metal encasement around the shaft while adding supplemental strength to the driveline. Designed for 12 & 14 Series applications with a 1" x 1-1/8" rectangular ID, this 72" tube is a solid choice when you need to replace worn tubing or build/repair a PTO shaft—because “wobbly driveline” is not a feature.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 600-2022
• Product Type: Rectangular PTO tube
• Series Compatibility: 12 & 14 Series
• Profile / Bore Shape: 1" x 1-1/8" rectangle
• Bore 1 (ID): 1.12 in (28 mm) — 1" x 1-1/8" RECTANGLE
• Connection 1: Square shaft
• Length: 72.00 in (1829 mm)
• Outside Diameter / Tube Size: 1.37 in (35 mm)
• Tube Bore Diameter: 1.37 in (35 mm)
• Weight: 12.08 lb (5 kg)
• Shipping Dimensions: 72" L × 1.375" H × 1.375" W ( 183 cm L × 3 cm H × 3 cm W )
• Shipping Volume: 136.12 in³ (2231 cm³)
• Shipping Weight: 12.08 lb (5 kg)

Ideal For

• Replacing damaged or worn tubing on PTO drive shafts (12 & 14 Series)
• PTO repairs needing a 1" x 1-1/8" rectangular ID tube profile
• Restoring driveline strength with a reinforcing encasement around the shaft
• Shops/farms that want their PTO to transmit power, not transmit vibrations
